3-IN-1 Metal Forming Machine, 3-IN-1 Machine Combination Roll Brake & Shear

Short Description:

Removable male dies with female dies;Back gauge standard equipment;With 2-position handles;Shears cuts mild steel or equipment;


Product Detail

Product Tags

Features

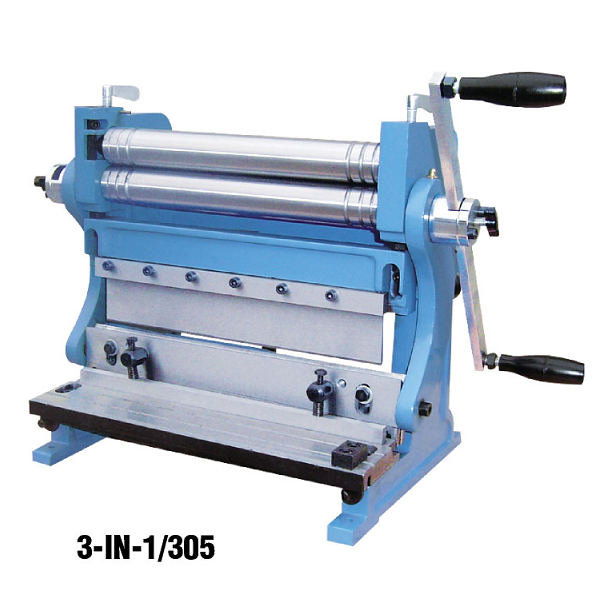

3-IN-1     305

1. Ideal combination machine for sheet metal machining to a lenth of 305mm and a thickness of 1.0mm cutting stop
2.Roll bending starting with diameter of 39mm
3. Folding with max. Angle of 90°
4. Adjustable rear stop

3-IN-1     305

1. Ideal combination machine for sheet metal machining to a lenth of 305mm and a thickness of 1.0mm cutting stop
2.Roll bending starting with diameter of 39mm
3. Folding with max. Angle of 90°
4. Adjustable rear stop

Item No 221010 221012 221014 221016 221018 221020
Model 3-IN-1/305 3-IN-1/610 3-IN-1/760 3-IN-1/1016 3-IN-1/1067 3-IN-1/1320
Bed width (mm) 305(12") 610(24") 760(30") 1016(40") 1067(42") 1320(52")
Max. Shearing thickness (mm) 1.0 1.0 1.0 1.0 1.0 1.0
Max.Bending thickness (mm) 1.0 1.0 1.0 1.0 1.0 1.0
Max.Bending Angle (degree) 90 90 90 90 90 90
Max.Rolling Thickness (mm) 1 1 1 1 1 1
Min. rolling Dia. (mm) 39 39 39 43 43 43
Packing Dimension (cm) 50×34×42 87x45x68 97x45x68 125x45x68 150x55x75 163x55x75
N.W./G.W.(KGS) 45/46 100/120 120/140 186/204 320/350 360/390
Loading Q'ty of 20'CY 180 105 90 60 48 39
