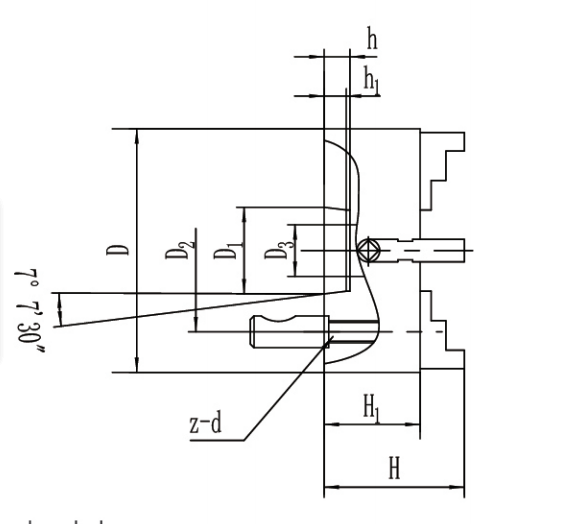

4-JAW DIRECT MOUNT D1 CAMLOCK CHUCKS
|
Item No. |
Model |
D1 |
D2 |
D3 |
H |
H1 |
h |
h1 |
z-d |
|
571281 |
K72200/D3 |
63.513 |
82.6 |
56 |
107 |
75 |
13 |
10 |
3-M10x1 |
|
571283 |
K72250/D5 |
82.563 |
104.8 |
56 |
107 |
75 |
15 |
12 |
3-M10x1 |
|
571285 |
K72250/D6 |
106.375 |
133.4 |
75 |
120 |
80 |
16 |
13 |
6-M16x1.5 |
|
571287 |
K72325/D6 |
106.375 |
133.4 |
95 |
134 |
90 |
16 |
13 |
6-M16x1.5 |
|
571289 |
K72400/D8 |
139.719 |
171.4 |
125 |
143 |
95 |
18 |
14 |
6-M20x1.5 |
