Bead Bending Machine/ Form Bender/ Bending Brake FB-4

Short Description:

*For cold forming of steel and metals including setup plate for table clamping|
*Also bends closed forms
*Stamps a stencil fr round roll bending available
*It used for press bending ornamental iron, mild steel, aluminum and other metals.
*Easily mounted to any bench top.
*It can bend to 90 degree by simple turning handle lever until the desired angle is accomplished.


Product Detail

Product Tags

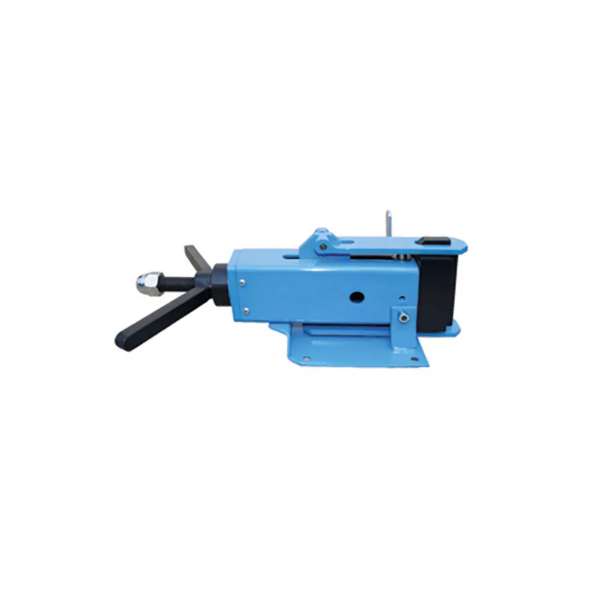

Bead Bending Machine/ Form Bender/ Bending Brake

FB-4 Bead Bending Machine 01

Feature
*For cold forming of steel and metals including setup plate for table clamping
*Also bends closed forms
*Stamps a stencil fr round roll bending available
*It used for press bending ornamental iron, mild steel, aluminum and other metals.
*Easily mounted to any bench top.
*It can bend to 90 degree by simple turning handle lever until the desired angle is accomplished.

Specification

Item 241030
Model FB-4
Capacity 3/4” x 11/16” ; 2” x 7/16”; 4” x 5/16”
Packing size 41 x 16 x 19 cm
N.W/G.W. 8.5 / 10 kg

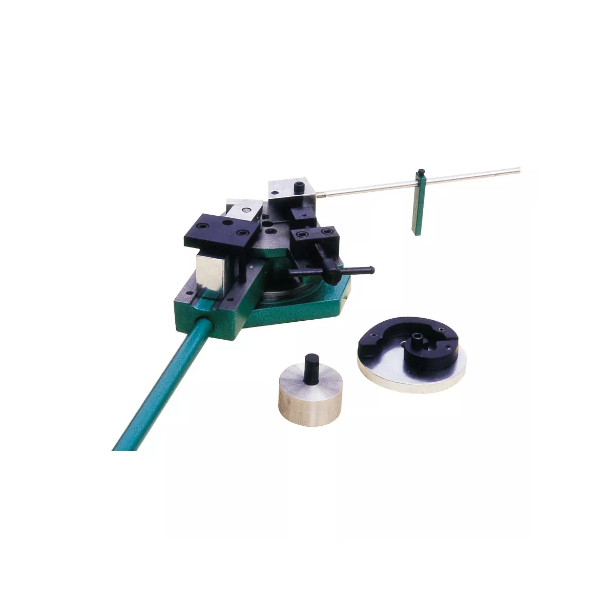

SBG-40 Universal Bender

SBG-40 Universal Bender

Feature
*For angular, roll, hoop and coil bending

*To produce grids, doors, gates, balcony railing, patio furniture as well as rod iron lamps.
*Suitable for steel, brass, copper and aluminum
*Sturdy design for screw mounting on workbench
*Ideal for repair shops and metal working shops
Standard accessories:
Angle stop, bending plate, bending lever, material stop
Optional accessories:
No.

Item No. 241036
Model SBG-40
Capacity Flat steel 30x8 mm
  Round steel 15 mm
  Square steel 13x13mm
  Angle steel -
Packing size Body 50x32x23 cm
  Handle Together with body
N.W./G.W. 23/24kg

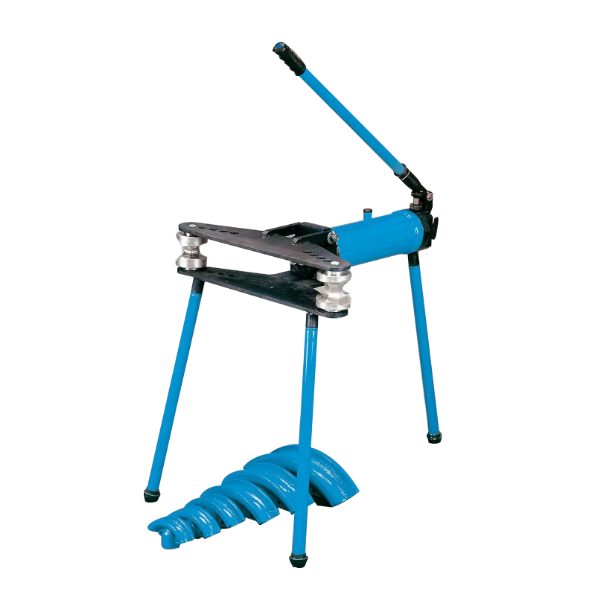

HB-10 Hydraulic Metal Tubing Bender

HB-10 Hydraulic Metal Tubing Bender

Feature:
The hydraulic pipe bender can bend the pipe easy with cylinder. It has various molds to bend the pipe in various sizes.
Standard accessories:
This machine with seven sets standard dies , the size is 1/2”3/4”1”1-1/4”1-1/2”2”2- 1/2"

ITEM NO. 231020
Model HPB-10T
Max.pressure (ton) 10
Max.ram strike (mm) 155
Packing dimension (cm) 71X59X22
N.W./G.W.(kg) 45/48

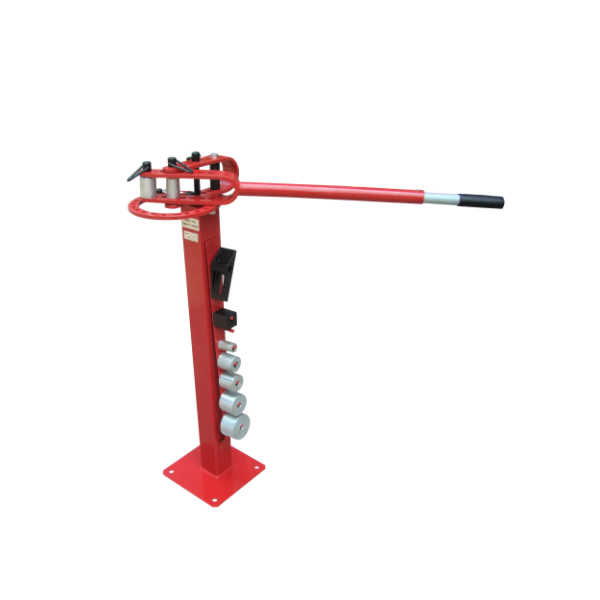

Shaping & Forming Machine YP-38 Universal Bender, Compact bender YP38

YP-38 Universal Bender

Feature:
*This fantastic manual flat bar bender is used for railings, fences, gates and hundreds of additional applications
*This will handle the job with so much versatility

Item 241010
Model YP-38
Mild steel capacity (mm) 8 x 32mm  6 x 50mm
Bending angle 0 – 200°
Packing size (cm) 88 x 26 x 26
N.W/G.W(kg) 22.5 / 24
