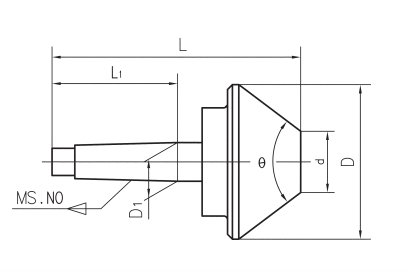

BULL NOSE LIVE CENTERS
|
Morse Taper |
L(mm) |
L1(mm) |
D(mm) |
D1(mm) |
d(mm) |
θ |
Item No. |
|
MT2 |
135 |
64 |
61.9 |
17.780 |
12.7 |
70° |
562-171 |
|
MT3 |
152 |
81 |
76.2 |
23.825 |
19 |
70° |
562-172 |
|
MT3 |
170 |
81 |
100 |
23.825 |
30 |
60° |
562-173 |
|
MT3 |
164 |
81 |
100 |
23.825 |
32 |
75° |
562-174 |
|
MT4 |
232 |
102.5 |
160 |
31.267 |
40 |
60° |
562-175 |
|
MT4 |
225 |
102.5 |
160 |
31.267 |
35 |
75° |
562-176 |
|
MT5 |
252 |
129.5 |
200 |
44.399 |
40 |
75° |
562-177 |
|
MT5 |
281 |
129.5 |
250 |
44.399 |
57 |
75° |
562-178 |
