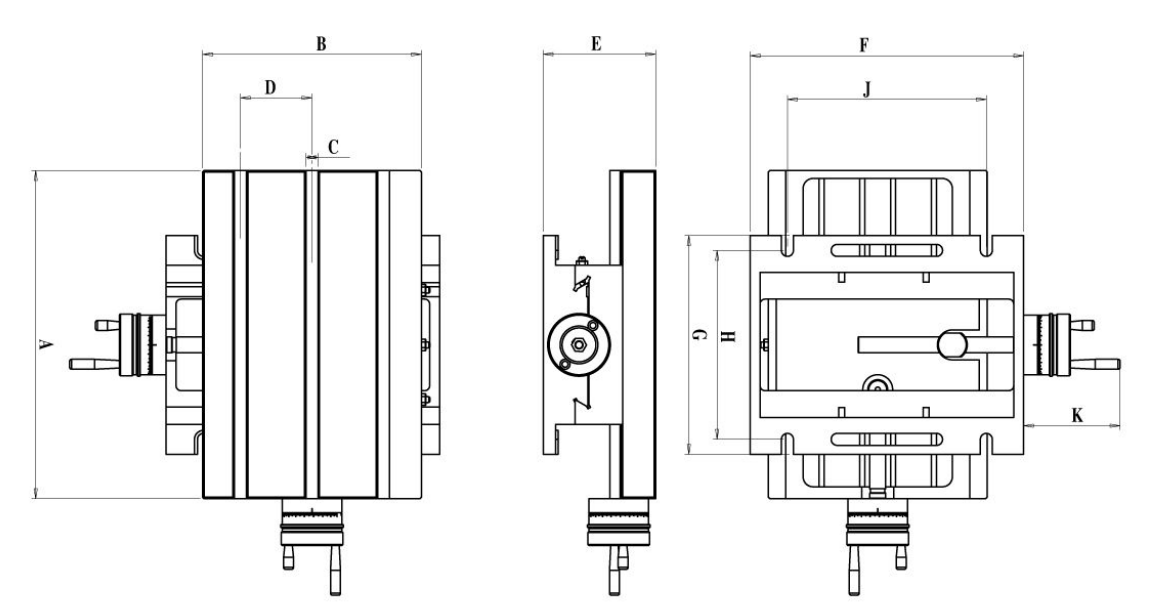

CROSS SLIDE TABLE
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
X travel |
Y travel |
Packing size |
NW/GW |
Item No. |
|
201 |
185 |
100 |
10 |
35 |
102 |
170 |
130 |
115 |
100 |
96 |
80 |
50 |
28×28×17 |
10/11 |
531001 |
|
202 |
225 |
175 |
12 |
72 |
108 |
225 |
175 |
148 |
160 |
96 |
105 |
90 |
36×36×20 |
16/17 |
531003 |
|
203 |
330 |
220 |
12 |
72 |
115 |
275 |
220 |
200 |
200 |
96 |
190 |
100 |
41×36×18 |
23/26 |
531005 |
|
204 |
425 |
240 |
12 |
72 |
125 |
335 |
276 |
240 |
245 |
144 |
225 |
150 |
60×44×18 |
41/45 |
531007 |
|
205 |
600 |
240 |
12 |
72 |
125 |
335 |
276 |
240 |
245 |
144 |
400 |
150 |
77×44×18 |
51/56 |
531009 |
