HORIZONTAL ROTARY TABLE
The TS series horizontal rotary tables are for indexing,circular cutting,angle setting,boring,spot tacing operations and similar work in conjunction with a milling machine.
A flange for connecting scroll chuck is special supplied.an be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360º rotation of the clamping surface into divisions of 2 through 66,and all divisible of 2,3and 5 from 67-132.
MAIN SPECIFICATIONS
|
TS160A |
TS200A |
TS250A |
TS320A |
TS400A |
TS500A |
TS630A |
|
|
Table diameter mm |
φ160 |
φ200 |
φ250 |
φ320 |
φ400 |
φ500 |
φ630 |
|
Morse taper of the center hole |
2# |
3# |
3# |
4# |
4# |
5# |
5# |
|
Diameter of the center hole mm |
φ25×6 |
φ30×6 |
φ30×6 |
φ40×10 |
φ40×10 |
φ50×12 |
φ50×12 |
|
Width of T-solt mm |
10 |
12 |
12 |
14 |
14 |
18 |
18 |
|
Adjacent angle of T-slot |
90º |
90º |
60º |
60º |
60º |
45º |
45º |
|
Width of the locating key mm |
12 |
14 |
14 |
18 |
18 |
- |
- |
|
Modules of worm and worm gear |
1.5 |
1.75 |
2 |
2.5 |
3.5 |
3.5 |
4.5 |
|
Transmission ratio of the worm gear |
1:90 |
1:120 |
|||||
|
Graduation of the table |
360º |
||||||
|
Rotating angle of table with one revolution of zhe worm |
4º(1′per graduation) |
3º(1′per graduation) |
|||||
|
Minimum value of vernier |
10″ |
||||||
|
Indexing accuracy |
80″ |
60″ |
|||||
|
Max.workload kg |
100 |
150 |
220 |
250 |
300 |
550 |
700 |
|
Net weigth kg |
16.5 |
22.5 |
33.5 |
65 |
125 |
215 |
345 |
|
Gross weight kg |
21.5 |
31 |
44.5 |
76 |
145 |
238 |
377 |
|
Caxe dimensions mm |
400x330x200 |
400x360x208 |
500x400x210 |
580x480x238 |
750x616x280 |
850x730x302 |
995x900x326 |
|
Machine chuck |
K11125 |
K11160 |
K11200 |
K11250 |
K11325 |
K11400 |
K11500A |
|
Item No. |
531010 |
531012 |
531014 |
531016 |
531018 |
531020 |
531022 |

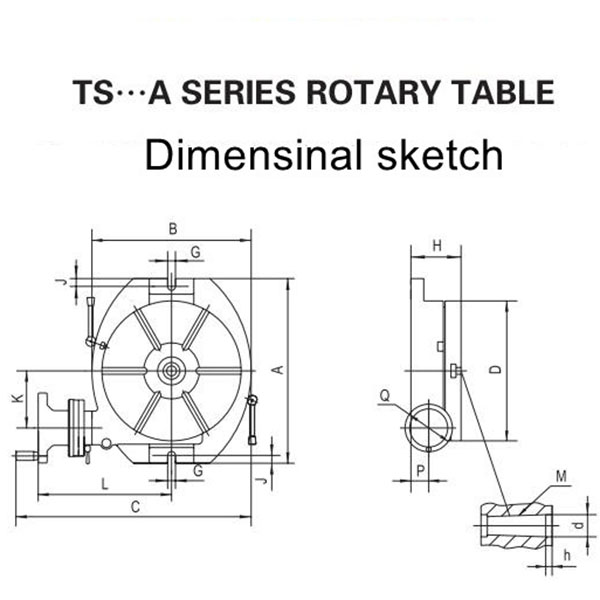

TS-A Installation sketch and dimensions:
|
|
TS160A |
TS200A |
TS250A |
TS320A |
TS400A |
TS500A |
TS630A |
|
A |
160 |
290 |
330 |
410 |
530 |
640 |
820 |
|
B |
196 |
236 |
286 |
360 |
450 |
560 |
700 |
|
C |
332 |
396 |
422 |
493 |
612 |
752 |
898 |
|
D |
φ160 |
φ200 |
φ250 |
φ320 |
φ400 |
φ500 |
φ630 |
|
G |
12 |
14 |
14 |
18 |
18 |
22 |
22 |
|
H |
75 |
80 |
90 |
110 |
140 |
158.5 |
160 |
|
J |
12 |
14 |
14 |
18 |
18 |
20 |
20 |
|
K |
76 |
89.75 |
102.5 |
128.5 |
180 |
230 |
295 |
|
L |
194 |
211 |
241 |
273 |
337 |
392 |
468 |
|
M |
MT2 |
MT3 |
MT3 |
MT4 |
MT4 |
MT5 |
MT5 |
|
P |
27 |
29.5 |
30.5 |
44 |
60 |
60 |
68 |
|
Q |
125 |
125 |
125 |
140 |
160 |
180 |
220 |
|
d |
φ25 |
φ30 |
φ30 |
φ40 |
φ40 |
φ50 |
φ50 |
|
h |
6 |
6 |
6 |
10 |
10 |
12 |
12 |
