Indexable Turning Tools Set with Carbide TiN coated Inserts 9pcs/set, #631112

Short Description:

1/2″ Turning tools Set 9pcs/set Includes: One each of MGEHR 1/2″-3, SER 1/2″-16, SDJCR 1/2″-11, SCLCR 1/2″-09, SSRCR 1/2″-09, SSSCR 1/2″-09, SCLCL 1/2″-09, S1/2″M-SER11, S1/2″M-SCLCR06. 2pcs wrench& 1pc Allen Key


Product Detail

Product Tags

Feature

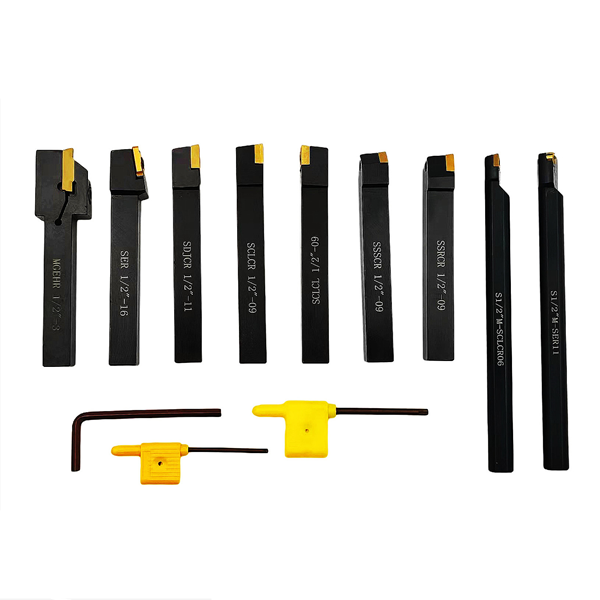

1. 1/2" Turning tools Set 9pcs/set Includes: One each of MGEHR 1/2"-3, SER 1/2"-16, SDJCR 1/2"-11, SCLCR 1/2"-09, SSRCR 1/2"-09, SSSCR 1/2"-09, SCLCL 1/2"-09, S1/2"M-SER11, S1/2"M-SCLCR06. 2pcs wrench& 1pc Allen Key
2. 40Cr Indexable Turning Tools with Carbide TiN coated Inserts.
3. Quenching hardness 45-48 degrees

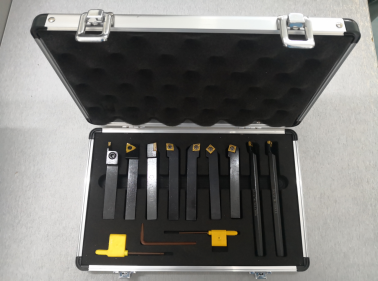

4. 1/2" Turning tools Set 9pcs/set is packed in one Aluminum box for a complete storage solution.

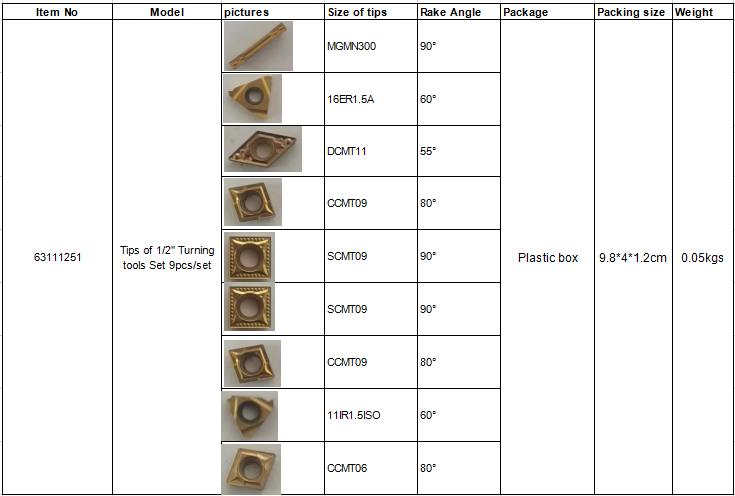

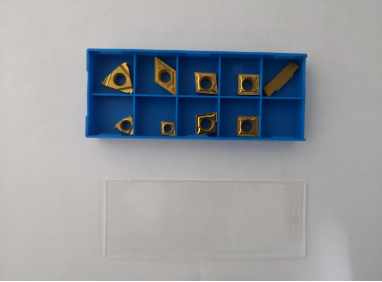

5. Tips of 1/2" Turning tools Set 9pcs/set is packed in one Pastic box for a complete storage solution.

1/2" Turning tools Set 9pcs/set

img (1)
img (2)
Indexable Turning Tools Set 02

Description

1. Grooving knife, mainly used for cutting and grooving.
2. External thread turning tool, used for processing external thread.
3. The 93° external turning tool, used for fine turning of the external circle.
4. The 95° external turning tool, used for semi-finishing external turning.
5. 75° external turning tool, used for rough turning external.
6. 45° external turning tool, used for face turning and rough turning.
7. The 95° reverse external turning tool, used for rough and fine turning in the opposite direction.
8. Internal thread turning tool, used for processing internal hole threads.
9. The inner hole turning tool, used for rough and fine turning inner holes.

Item No

Model

Size Center Hight Blade Size Length of blade Size of tips Angle of Knife handle Materia of Knife handle Package Packing size Weight

631112

1/2" Turning tools Set 9pcs/set

MGEHR 1/2"-3 12.7mm 12.7*12.7mm 100mm MGMN300 90° 40Cr

Aluminum box

28*18.1*5cm

1.2kgs

SER 1/2"-16 12.7mm 12.7*12.7mm 100mm 16ER1.5A 60° 40Cr
SDJCR 1/2"-11 12.7mm 12.7*12.7mm 100mm DCMT11 93° 40Cr
SCLCR 1/2"-09 12.7mm 12.7*12.7mm 100mm CCMT09 95° 40Cr
SSRCR 1/2"-09 12.7mm 12.7*12.7mm 100mm SCMT09 75° 40Cr
SSSCR 1/2"-09 12.7mm 12.7*12.7mm 100mm SCMT09 45° 40Cr
SCLCL 1/2"-09 12.7mm 12.7*12.7mm 100mm CCMT09 95° 40Cr
S1/2"M-SER11 6.35mm 12.7*12.7mm 150mm 11IR1.5ISO 60° 40Cr
S1/2"M-SCLCR06 6.35mm 12.7mm 150mm CCMT06 95° 40Cr
01
