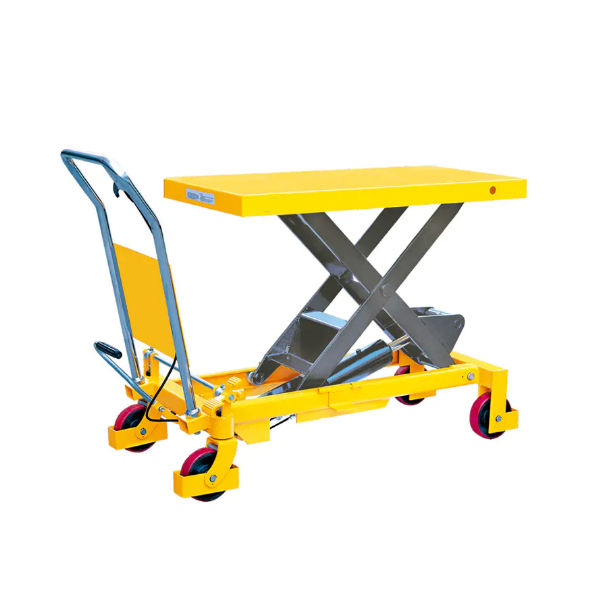

Lift table HSL Series
Advantage
1. Welded steel frame with durable coat finish.
2. Durable hydraulic pump ensures a long service life.
3. Robust casters with safety wheel guard enhance safety while operation.
4. Easy action foot operated foot hydraulic pedal for raising the lift table to a desired height level.
5. Safety back guard protects operators from dangers.
6. With supporting plat on side of arm to ensure the safety service.
7. Convenient finger release smoothly lowers even heavy loads.
8. With over load by pass valve to protect operator and pump.

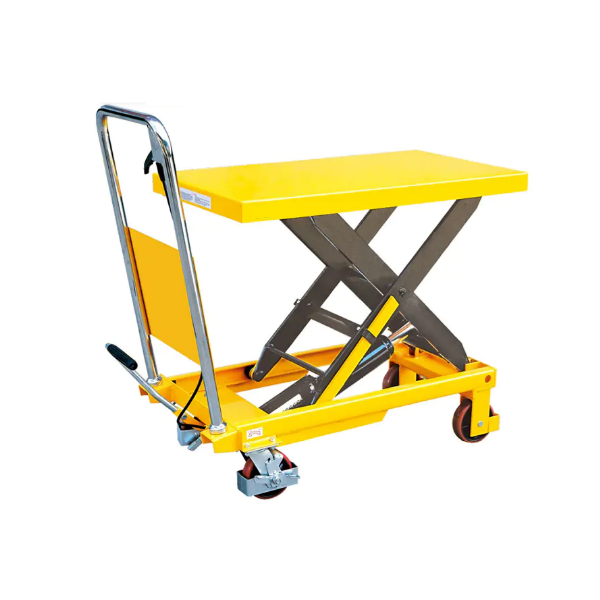

HSL 3 and HSL 5
| Model |
Unit |
HSL 3 |
HSL 5 |
HSL 8 |
HSL 10 |
HSL 15 |
| Item No. |
|
233100 |
233103 |
233104 |
233105 |
233106 |
| Capacity |
kg |
300 |
500 |
800 |
1000 |
1500 |
| Max. Lift Height |
h12(mm) |
900 |
900 |
1000 |
1000 |
1000 |
| Min. Height of Table |
h13(mm) |
340 |
340 |
420 |
380 |
420 |
| Lifting Height |
h3(mm) |
560 |
560 |
580 |
620 |
580 |
| Table Size |
lxb5xs(mm) |
855x500x50 |
855x500x50 |
1000x510x55 |
1016x510x60 |
1220x610x60 |
| Table Height |
h14(mm) |
970 |
970 |
996 |
962 |
962 |
| Overall Length |
l1(mm) |
925 |
925 |
1150 |
1170 |
1379 |
| Foot Pedal Cycles to Max Height |
(mm) |
≤32/≤45 |
≤32/≤45 |
≤70 |
≤55 |
≤70 |
| Wheel Diameter |
d(mm) |
127 |
127 |
150 |
150 |
150 |
| Qty./20" |
pcs |
120 |
120 |
52 |
52 |
48 |
| Service Weight |
kg |
82/87 |
82/87 |
115 |
115 |
135 |
| Carton Size |
mm |
950x530x390 |
950x530x390 |
1180x615x460 |
1180x615x430 |
1410x730x450 |

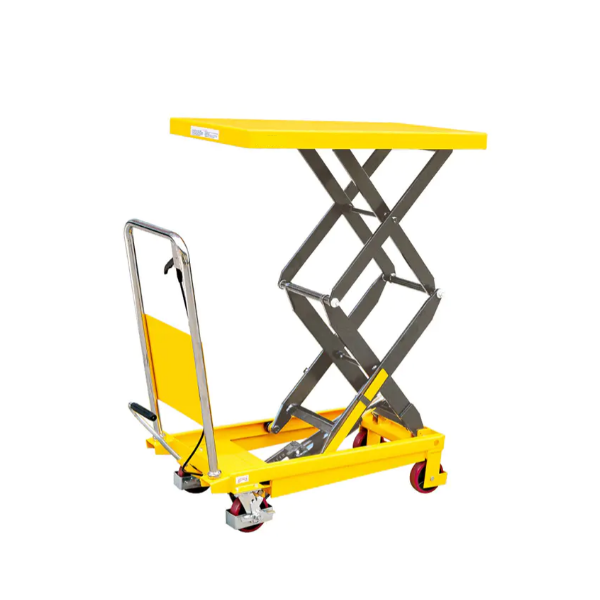

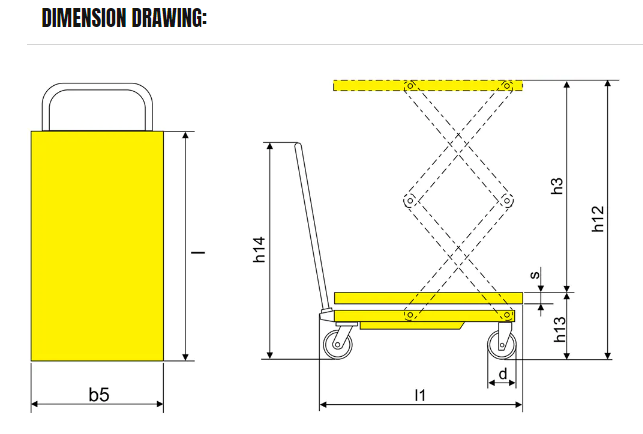

Double Scissors Lift table HSL15A and HSL35A
| Model |
Unit |
HSL15A |
HSL 35A |
| Item No. |
|
233101 |
233102 |
| Capacity |
kg |
150 |
350 |
| Max. Lift Height |
h12(mm) |
1100 |
1300 |
| Min. Height of Table |
h13(mm) |
302 |
350 |
| Lifting Height |
h3(mm) |
798 |
950 |
| Table Size |
lxb5xs(mm) |
700x450x35 |
910x500x50 |
| Table Height |
h14(mm) |
921 |
970 |
| Overall Length |
l1(mm) |
773 |
980 |
| Foot Pedal Cycles to Max Height |
(mm) |
≤30 |
≤60 |
| Wheel Diameter |
d(mm) |
100 |
127 |
| Qty./20" |
pcs |
168 |
110 |
| Service Weight |
kg |
64 |
105 |
| Carton Size |
mm |
800x480x330 |
1010x530x390 |

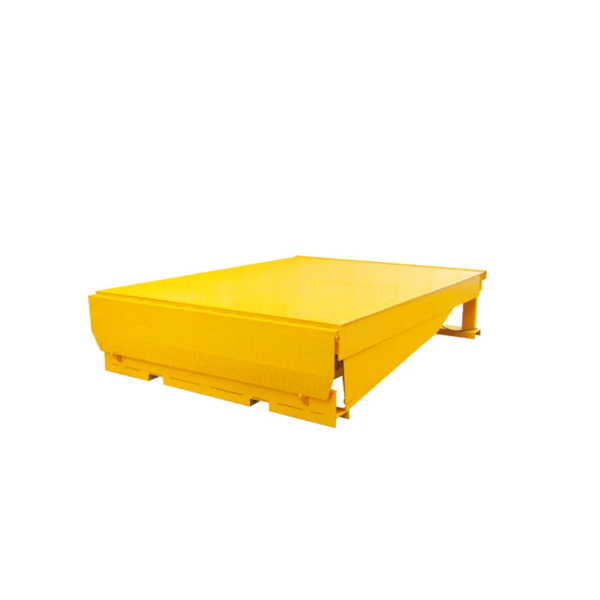

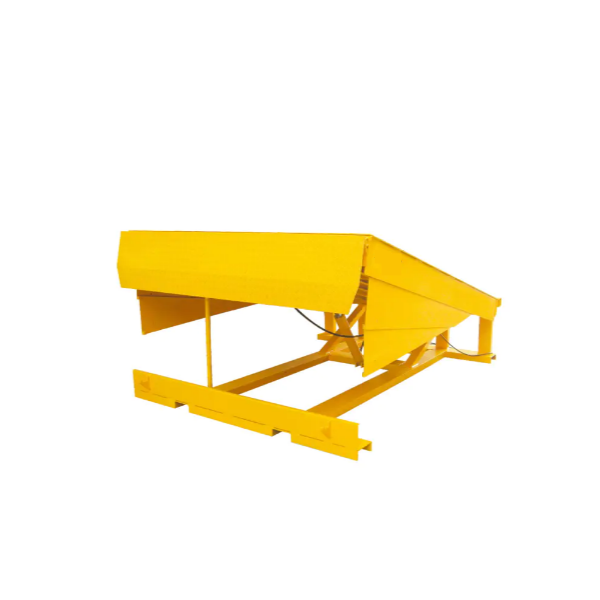

Lift table EDL Series
Remark：Can be made according to the specific size requirements of customers
| Model |
Unit |
EDL6T |
EDL8T |
| Item No. |
|
233200 |
233201 |
| Capacity |
kg |
6000 |
8000 |
| Table Size |
mm |
2500x2000 |
2500x2000 |
| Lip Board Size |
mm |
2000x400 |
2000x400 |
| Lifting Height Up |
mm |
400 |
400 |
| Lifting Height Down |
mm |
300 |
300 |
| Exterior Size(LxWxH) |
mm |
2640x2040x600 |
2640x2040x600 |
| Motor |
kw |
0.75 |
0.75 |
| Voltage |
v |
220/380 |
220/380 |
| Pithead Size |
mm |
2580x2080x600 |
2580x2080x600 |
| Service Weight |
kg |
1110 |
1150 |
