Manual Hand Pallet Truck 2500kg 3000kg Cargo Transporter Pallet Lifting Moving Hand Forklift
Advantage
1. Innovative design, comprehensive testing and highest quality!
2. Most standard and popular model with capacity 2500-3000kgs.
3. With copping supporting NOG strengthening ribbing under top triangle cover.
4.Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
5. 210 steering arc, and small turning radius.
6. Fork Lowering speed is controllableoperated by hand control and foot pedal.
7. Entry/ exit roller, more freely travel.
8. Equipped with over-load valve, with long service time.
9. 3 position hand control Raise, Lower, Neutral.
10.12 lubrication grease nipples on all movable parts for easy maintenance
11. Adjustable pump cap ensures a long service life.
12. Ergonomic large rubber handle with three control lever.
Option Accessories

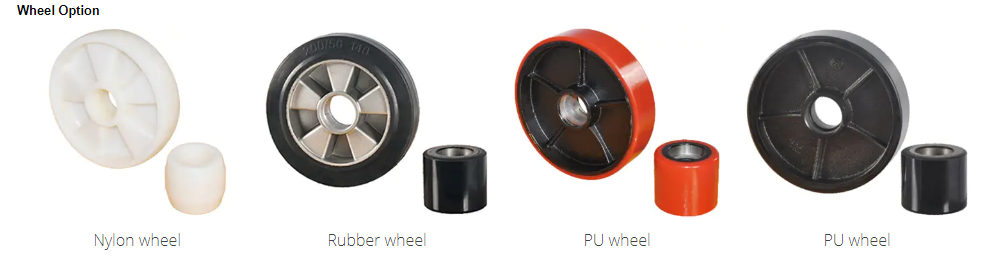

1) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
2) Fork length: 800mm, 900mm, 1000mm.
3) Foot pedal release.
4) Pump color: black painting, silver painting

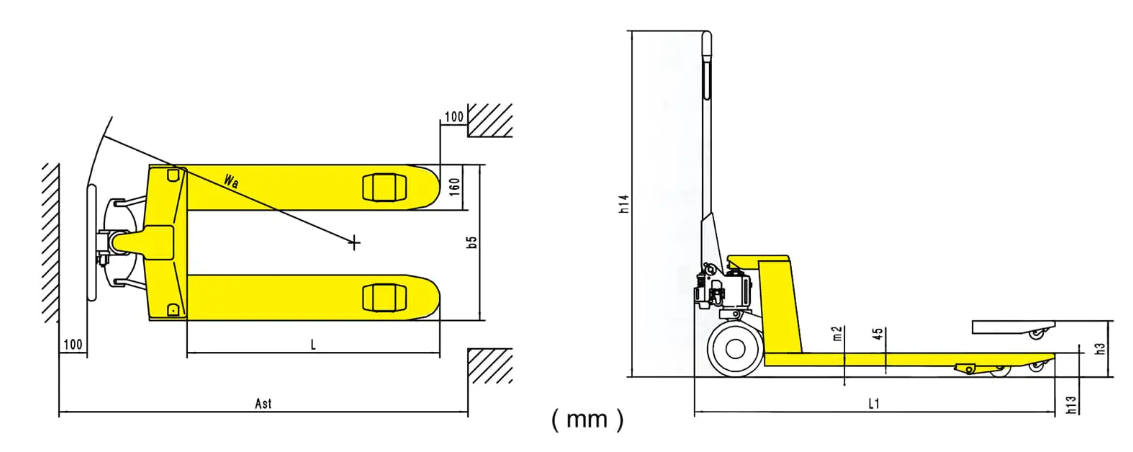

Dimension Drawing
| Item No. |
233041 |
233042 |
233043 |
233044 |
233045 |
233046 |
233047 |
233048 |
|
| Model |
Unit |
HPT25-1 |
HPT25-2 |
HPT25-3 |
HPT25-4 |
HPT30-1 |
HPT30-2 |
HPT30-3 |
HPT30-4 |
| Capacity |
Q(kg) |
2500 |
2500 |
2500 |
2500 |
3000 |
3000 |
3000 |
3000 |
| Lowered fork height |
h13(mm) |
85 |
85 |
75 |
75 |
85 |
85 |
75 |
75 |
| Steering wheel |
mm |
φ200 |
φ200 |
φ180 |
φ180 |
φ200 |
φ200 |
φ180 |
φ180 |
| Fork wheel single |
mm |
φ80*93 |
φ80*93 |
φ74*93 |
φ74*93 |
φ80*93 |
φ80*93 |
φ74*93 |
φ74*93 |
| Fork wheel tandem |
mm |
φ80*70 |
φ80*70 |
φ74*70 |
φ74*70 |
φ80*70 |
φ80*70 |
φ74*70 |
φ74*70 |
| Max. lift height |
h3(mm) |
200 |
200 |
190 |
190 |
200 |
200 |
190 |
190 |
| Total height |
h14(mm) |
1224 |
1224 |
1214 |
1214 |
1224 |
1224 |
1214 |
1214 |
| Overall length |
l1(mm) |
1533 |
1603 |
1533 |
1603 |
1533 |
1603 |
1533 |
1603 |
| Fork length |
l(mm) |
1150 |
1220 |
1150 |
1220 |
1150 |
1220 |
1150 |
1220 |
| Width overall forks |
b5(mm) |
550 |
685 |
550 |
685 |
550 |
685 |
550 |
685 |
| Ground clearance centre of wheelbase |
m2(mm) |
40 |
40 |
30 |
30 |
40 |
40 |
30 |
30 |
| Aisle width for pallets 1000x1200 crossways |
Ast(mm) |
1733 |
1803 |
1733 |
1803 |
1733 |
1803 |
1733 |
1803 |
| Aisle width for pallets 800x1200 lengthways |
Ast(mm) |
1783 |
1803 |
1783 |
1803 |
1783 |
1803 |
1783 |
1803 |
| Turning radius |
Wa(mm) |
1266 |
1336 |
1266 |
1336 |
1266 |
1336 |
1266 |
1336 |
| Service weight |
kg |
60-75 |
60-75 |
60-75 |
60-75 |
60-75 |
60-75 |
60-75 |
60-75 |
Manual Hand Pallet Truck High Lift Truck HLT10
Advantage
1. Ideal design with numerous possibilities makes this unit very suitable as pallet truck / scissor lift table.
2. Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
3. Support legs come into operation automatically.
4. It prevents the unit from moving when the forks are raised to keep the safety of the operator.
5. Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
6. 210 degree turning radius.
7. 2 lateral stabilzers when raised ensure good stability)

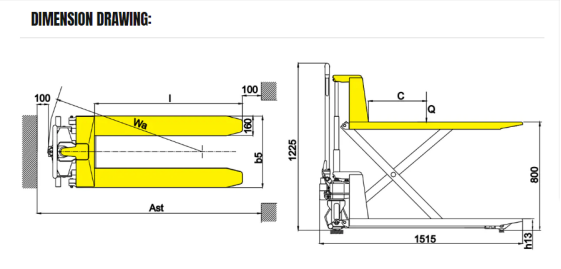

Dimension Drawing
| Model |
Unit |
HLT10 |
| Item No. |
|
233050 |
| Capacity |
Q(kg) |
1000 |
| Lowered fork height |
h13(mm) |
85 |
| Steering wheel |
mm |
Φ180X50 |
| Fork wheel |
mm |
Φ74X50 |
| Fork Length |
l(mm) |
1150 |
| Width overall forks |
b5(mm) |
520/550/685 |
| Aisle width for pallets 1000x1200 crossways |
Ast(mm) |
1715 |
| Aisle width for pallets 800x1200 lengthways |
Ast(mm) |
1765 |
| Turning radius |
Wa(mm) |
1360 |
| Service weight |
kg |
104-115 |
