Stand |
Wooden stand |
Plastic stand |
||||||||

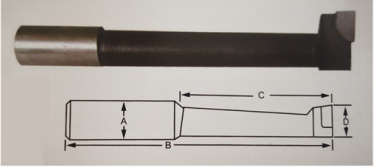

"A" | "B" | "C" | "D" | ISO K20 | ISO P20 | Material | ISO K20 | ISO P20 | ISO K20 | ISO P20 |
Shank Dia | length | Bore depth | Min.Bore | Order No. | Order No. | Model | Order No. | Order No. | Order No. | Order No. |
10mm |
50.8 |
19 |
7.9 |
1375-3012 | 1375-3016 |
10mm, 9pcs/set |
375-3002 |
375-3006 |
375-3102 |
375-3106 |
10mm |
60.3 |
28.5 |
7.9 |
1375-3022 | 1375-3026 | |||||
10mm |
69.8 |
38.1 |
7.9 |
1375-3032 | 1375-3036 | |||||
10mm |
55.5 |
23.8 |
9.5 |
1375-3042 | 1375-3046 | |||||
10mm |
67.46 |
35.71 |
9.5 |
1375-3052 | 1375-3056 | |||||
10mm |
79.3 |
47.6 |
9.5 |
1375-3062 | 1375-3066 | |||||
10mm |
60.3 |
28.5 |
11.1 |
1375-3072 | 1375-3076 | |||||
10mm |
100 |
42.8 |
11.1 |
1375-3082 | 1375-3086 | |||||
10mm |
88.9 |
57.1 |
11.1 |
1375-3092 | 1375-3096 | |||||
12mm |
57.1 |
19 |
7.9 |
1375-3212 | 1375-3216 |
12mm, 9pcs/set |
375-3202 |
375-3206 |
375-3302 |
375-3306 |
12mm |
66.6 |
28.5 |
7.9 |
1375-3222 | 1375-3226 | |||||
12mm |
76.2 |
38.1 |
7.9 |
1375-3232 | 1375-3236 | |||||
12mm |
66.6 |
28.5 |
11.1 |
1375-3242 | 1375-3246 | |||||
12mm |
80.9 |
42.8 |
11.1 |
1375-3252 | 1375-3256 | |||||
12mm |
95.2 |
57.15 |
11.1 |
1375-3262 | 1375-3266 | |||||
12mm |
76.2 |
38.1 |
13 |
1375-3272 | 1375-3276 | |||||
12mm |
95.2 |
57.1 |
13 |
1375-3282 | 1375-3286 | |||||
12mm |
114.3 |
76.2 |
13 |
1375-3292 | 1375-3296 | |||||
16mm |
57.1 |
19 |
7.9 |
1375-3412 | 1375-3416 |
16mm, 12pcs/set |
375-3402 |
375-3406 |
375-3532 |
375-3536 |
16mm |
66.6 |
28.5 |
7.9 |
1375-3422 | 1375-3426 | |||||
16mm |
76.2 |
38.1 |
7.9 |
1375-3432 | 1375-3436 | |||||
16mm |
66.6 |
28.5 |
11.1 |
1375-3442 | 1375-3446 | |||||
16mm |
80.9 |
42.8 |
11.1 |
1375-3452 | 1375-3456 | |||||
16mm |
95.2 |
57.1 |
11.1 |
1375-3462 | 1375-3466 | |||||
16mm |
76.2 |
38.1 |
14.2 |
1375-3472 | 1375-3476 | |||||
16mm |
95.2 |
57.1 |
14.2 |
1375-3482 | 1375-3486 | |||||
16mm |
114.3 |
76.2 |
14.2 |
1375-3492 | 1375-3496 | |||||
16mm |
85.7 |
47.6 |
17 |
1375-3502 | 1375-3506 | |||||
16mm |
109.5 |
71.4 |
17 |
1375-3512 | 1375-3516 | |||||
16mm |
133.3 |
95.2 |
17 |
1375-3522 | 1375-3526 | |||||
18mm |
79.3 |
28.5 |
11.1 |
1375-3524 | 1375-3528 |
18mm, 12pcs/set |
375-3504 |
375-3508 |
375-3534 |
375-3538 |
18mm |
93.6 |
42.8 |
11.1 |
1375-3534 | 1375-3538 | |||||
18mm |
107 |
57.1 |
11.1 |
1375-3544 | 1375-3548 | |||||
18mm |
88.9 |
38.1 |
14.2 |
1375-3554 | 1375-3558 | |||||
18mm |
107.9 |
57.1 |
14.2 |
1375-3564 | 1375-3568 | |||||
18mm |
127 |
76.2 |
14.2 |
1375-3574 | 1375-3578 | |||||
18mm |
98.4 |
47.6 |
17.4 |
1375-3584 | 1375-3588 | |||||
18mm |
122.2 |
71.4 |
17.4 |
1375-3594 | 1375-3598 | |||||
18mm |
146 |
95.2 |
17.4 |
1375-3614 | 1375-3618 | |||||
18mm |
107.9 |
57.1 |
20.6 |
1375-3624 | 1375-3628 | |||||
18mm |
136.5 |
85.7 |
20.6 |
1375-3634 | 1375-3638 | |||||
18mm |
165.1 |
114.3 |
20.6 |
1375-3644 | 1375-3648 | |||||
20mm |
79.3 |
28.5 |
11.1 |
1375-3612 | 1375-3616 |
20mm, 12pcs/set |
375-3602 |
375-3606 |
375-3732 |
375-3736 |
20mm |
93.6 |
42.8 |
11.1 |
1375-3622 | 1375-3626 | |||||
20mm |
107.9 |
57.1 |
11.1 |
1375-3632 | 1375-3636 | |||||
20mm |
88.9 |
38.1 |
14.2 |
1375-3642 | 1375-3646 | |||||
20mm |
107.9 |
57.1 |
14.2 |
1375-3652 | 1375-3656 | |||||
20mm |
127 |
76.2 |
14.2 |
1375-3662 | 1375-3666 | |||||
20mm |
98.4 |
47.6 |
17.4 |
1375-3672 | 1375-3676 | |||||
20mm |
122.2 |
71.4 |
17.4 |
1375-3682 | 1375-3686 | |||||
20mm |
146 |
95.2 |
17.4 |
1375-3692 | 1375-3696 | |||||
20mm |
107.9 |
57.1 |
20.6 |
1375-3702 | 1375-3706 | |||||
20mm |
136.5 |
85.7 |
20.6 |
1375-3712 | 1375-3716 | |||||
20mm |
165.1 |
114.3 |
20.6 |
1375-3722 | 1375-3726 | |||||
25mm |
103 |
47 |
10 |
1375-3072 | 1375-3076 |
25mm, 6pcs/set |
375-4002 |
375-4006 |
375-5002 |
375-5006 |
25mm |
130 |
75 |
17 |
1375-3742 | 1375-3746 | |||||
25mm |
156 |
98 |
24 |
1375-3752 | 1375-3756 | |||||
25mm |
116 |
59 |
14 |
1375-3762 | 1375-3766 | |||||
25mm |
142 |
86 |
20 |
1375-3772 | 1375-3776 | |||||
25mm |
169 |
113 |
27 |
1375-3782 | 1375-3786 |
