MODEL CX80B PRECISION PUNCH FORMER

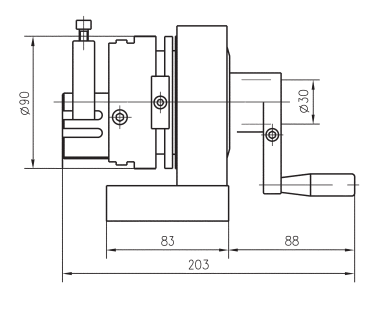

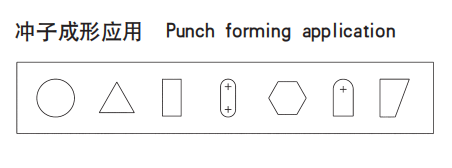

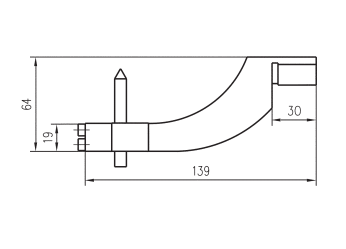

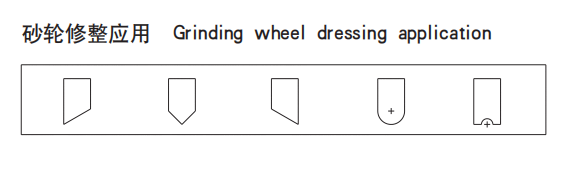

PUNCH FORMER is applicable on surface grinder or universal grinder for grinding round,radius and multi-angle points of punches and for precisely EDM electrode.Center hole allows long punch use.With its radius dresser arm,it is able to dress wheels to different straight,arc profiles.
|
Main Technical Data: |
|
|
|
Center height: |
80mm |
|
|
Clamping diameter in V-slot: |
4-30mm |
|
|
Travel of V-block: |
25mm |
|
|
Transversal travel of slide: |
±12.5mm |
|
|
Quantity of tooth: |
24 |
|
|
Max wheel diameter: |
200mm |
|
|
Max radius when dressing arc: |
Convex: |
R50mm |
|
Concave: |
R100mm |
|
|
Item No. |
575081 |
|
