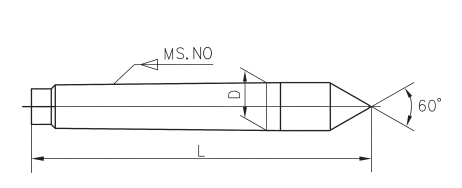

PRECISION LIGHT DUTY LIVE CENTERS
|
Morse Taper |
L(mm) |
D(mm) |
L1(mm) |
d(mm) |
D1(mm) |
Max Radial Load(N) |
Max Speed(rpm) |
Accuracy(mm) |
Item No. |
|
MT1 |
115 |
34 |
20.3 |
18 |
12.065 |
320 |
500 |
0.005 |
562-131 |
|
MT2 |
129.6 |
45 |
28.6 |
25 |
17.780 |
400 |
500 |
0.006 |
562-132 |
|
MT3 |
160.2 |
52 |
32 |
28 |
23.825 |
800 |
4500 |
0.006 |
562-133 |
|
MT4 |
191.7 |
60 |
36.8 |
32 |
31.267 |
1250 |
3500 |
0.006 |
562-134 |
|
MT5 |
244.5 |
80 |
50.8 |
45 |
44.399 |
1500 |
3000 |
0.006 |
562-135 |
|
MT6 |
350 |
130 |
74.8 |
75 |
63.348 |
1800 |
2500 |
0.006 |
562-136 |
|
MT7 |
423.5 |
130 |
74.8 |
75 |
83.061 |
2200 |
2000 |
0.006 |
562-137 |
