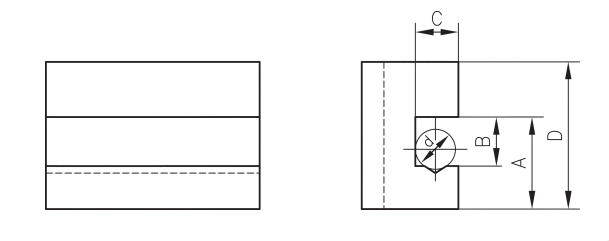

V groove hold round shank boring bars and tools as well as square tool bits to machine end face,external,cutting,boring etc.
Item NO. |
A(in) |
B(in) |
C(in) |
D(in) |
Swing dia(in) |
|
550-102 |
250-102 |
1 |
1/2 |
29/64 |
1-1/2 |
3/16-1/2 |
550-202 |
250-202 |
1-1/8 |
5/8 |
1/2 |
1-3/4 |
1/4-5/8 |
550-302 |
250-302 |
1-7/16 |
3/4 |
5/8 |
2-1/8 |
1/2-3/4 |
550-402 |
250-402 |
1-23/32 |
1 |
3/4 |
2-1/2 |
1/2-1 |
