Shaping & Forming Machine-Bead Bending Machine

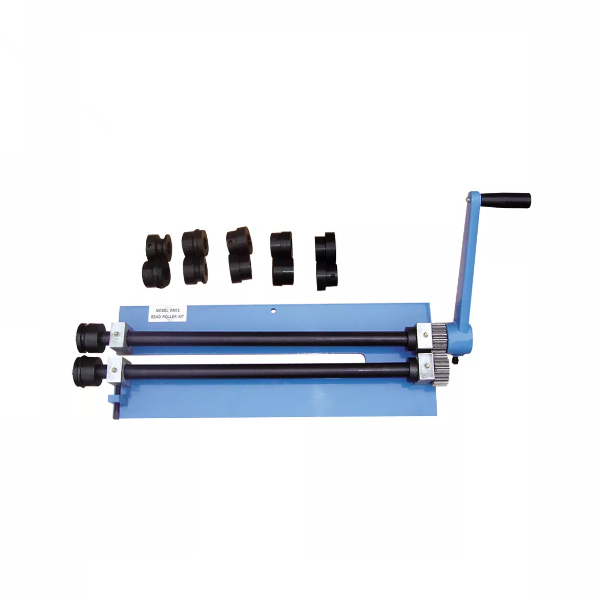

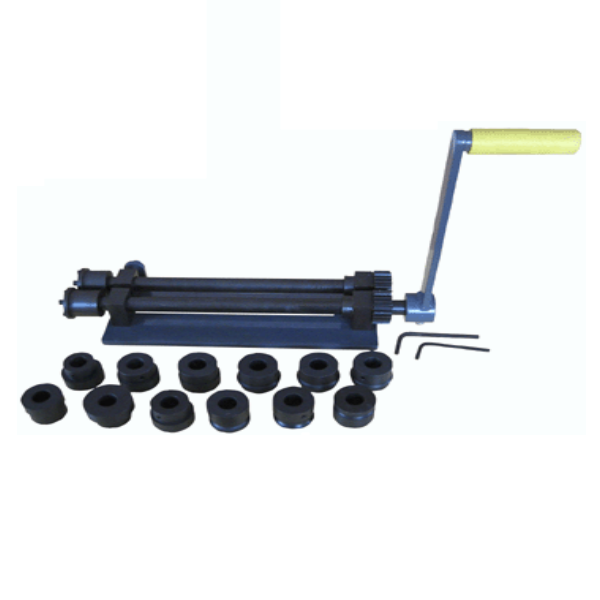

RM-12/RM-18 Bead Roller Machine
Feature:
*Plate steel body and sports a full 12 inch of throat depth. making it perfect for strengthening any type of panel such as roof, deck, and hoods
*This bead roller is manually operated by a hand crank that drives both the bottom and top bead rolls.
*This bench mounted manually operated bead roller comes with the most popular sizes of forming rolls for HVAC work.
parameter：
| Item NO. | 241055 | 241056 | 241057 |
| Model | RM12 | RM18 | RM18S |
| Throat Depth(mm) | 305mm/12" | 460mm/18" | 460mm/18" |
| Thickness (mm) | 1.2mm | 1.2mm | 1.2mm |
| Packing dimension (cm) | 73*26.5*14cm | 73*26.5*14cm | 73*26.5*14cm |
| N.W/G.W (kg) | 24/25kgs | 25/26kgs | 26/27kgs |
| Accessories | comes with R4, R6 and R7.5mm bead mandrel H1.5 ,H3, and h6mm Flange mandrels | comes with R4, R6 and R7.5mm bead mandrel H1.5 ,H3, and h6mm Flange mandrels | comes with R4, R6 and R7.5mm bead mandrel H1.5, H3, and h6mm Flange mandrels and with one set shearing mandrel |

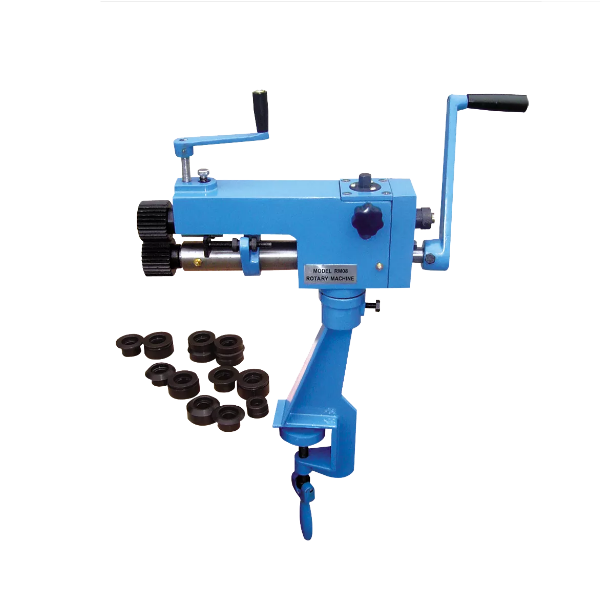

RM-08 ROTARY MACHINE
Feature:
1. With robust professional design for workshop and construction sites
2. Including 5 pairs standard rollers
3. Screw clamping
4. heavy duty cast iron body and sports a full 7 inch of throat depth.
5. This bench mounted manually operated bead roller comes with the most popular sizes of forming rolls for HVAC work.
6. A material depth stop is also included to help the operator achieve the straightest lines possible.
parameter：
| Item NO. | 241050 |
| Model | RM08 |
| Roller spacing(mm) | 50 mm |
| Throat Depth(mm) | 177mm/7" |
| Max. plate Thickness (mm) | 0.8mm |
| Packing dimension (cm) | 50*45*16cm |
| N.W/G.W (kg) | 23/24kgs |
