Shearing & Cutting Machine Right Angle Notcher Hand Notcher HN-3 and HN-4

Short Description:

* Hand notcher
* 90°fixed angle
* Notcher size 125x125mm
* Cuts up to 1.5 mm mild steel
* Features fully adjustable precision ground guide plates and fine reading scale A


Product Detail

Product Tags

Shearing & Cutting Machine Right Angle Notcher Hand Notcher HN-3 and HN-4

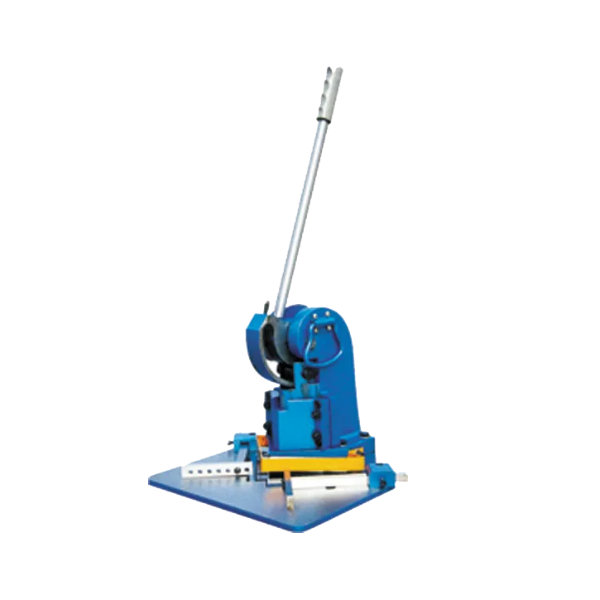

Hand Notcher HN-3

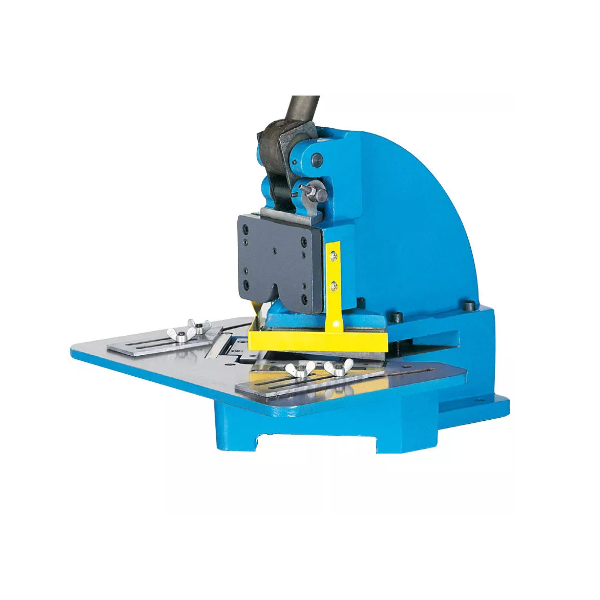

Hand Notcher HN-4

Features:

* Hand notcher
* 90°fixed angle
* Notcher size 125x125mm
* Cuts up to 1.5 mm mild steel
* Features fully adjustable precision ground guide plates and fine reading scale A

parameter:

Item No. 225060 225065
Model HN-3 HN-4
Capacity 3 Ton 4 Ton
Thickness (mm) 1.5mm 1.3mm
Punches (mm) 125×125 152×152
90°Angle (mm) 125×125 152×152
Ram Stroke (mm) 25 20
N.W./G.W.(KGS) 22/30 80/83
Packing Dimension(cm) 47*39*44 47*40*76
Loading Q'ty of 20'CY 390 144

Shearing & Cutting Machine-Pipe Notcher-PN Series Tube Notcher PN-1/2A Tube Notcher / Pipe notcher

PN-A Tube Notcher

Features:

* Specifically to help reduce airborne dust levels in the shop
* Large grinding dust and cutting chips are deposited in the removeable clean-out drawer
* Operate up to two machines at a time thanks to the 650 CFM of airflow capacity
* Adapter inlet diameter 100mm/4"
* Caster wheels for easy mobility
* Not for wood dust collection

parameter:

Item No. 226010
Model PN-1/2A
Flat steel 30*10mm
Round steel 10mm
Square steel 16mm
Angle 0-60°
Packing dimension (cm) 30*18*11cm
N.W/G.W (kg) 3/3.5
Ramarks Aluminium

PN-1/2S Tube Notcher / Pipe notcher

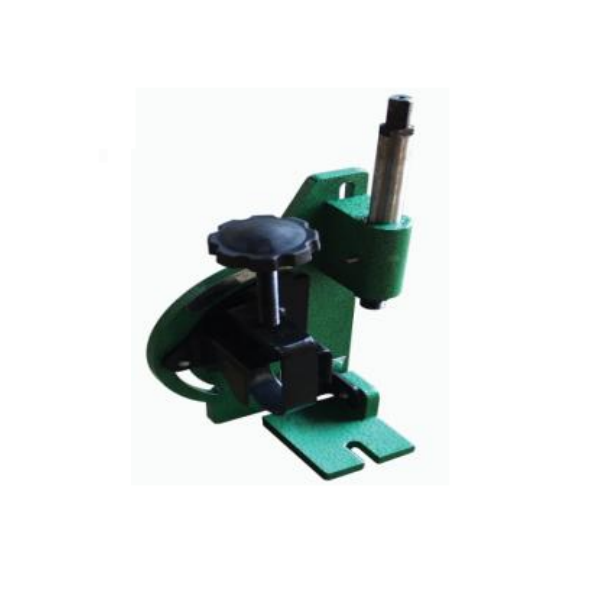

PN- S Tube Notcher

Features:

* This precision pipe notcher is a useful fixture for your drill press, allowing you to make round cuts in pipe and tubing of kinds shapes at any angle from 0-45 or 60°(AL)0-60°(steel)
* Sturdy and durable steel frame holds your work-pieces rigid during operation
* Base is adaptable to any worktable and is especially suitable to be mounted on drill presses.
* The base may be swiveled and rotated, which in conjunction with the adjustable pipe holder makes cutting compound angles easily.
* Made of steel

parameter:

Item No. 226012
Model PN-1/2S
Flat steel 30*10mm
Round steel 10mm
Square steel 15mm
Angle 0-60°
Packing dimension (cm) 30*18*11cm
N.W/G.W (kg) 4.5/5
Ramarks Steel

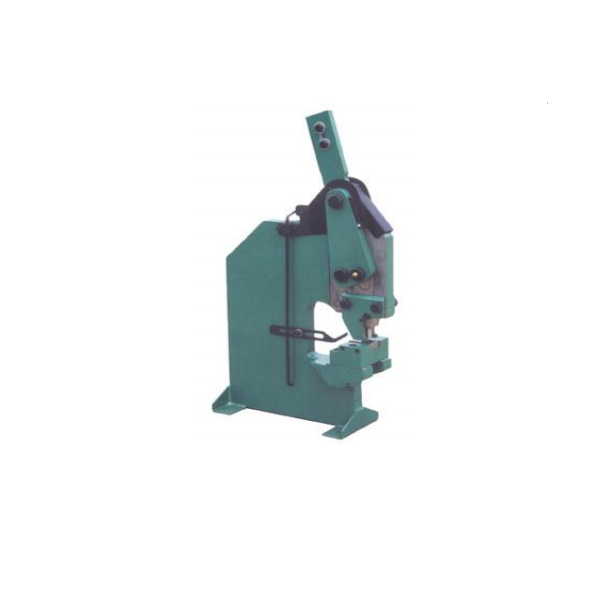

Shearing & Cutting Machine HP-20 Hand Puncher

Manual Lever Punch HP20

Features:

* Round deep-hole, square or similar stamps
* Easy quick stamps and stencil replacement

parameter:

Item No. 226014
Model HP-20
Max. Punching Capacity (mm) 8mm
Throat Depth(mm) 160mm
Punch Mold & Die: (mm) 55*34*18
Standard die 16mm/5/8"
The other die(extra cost) 1/8",3/16",1/4",5/16",3/8",7/19",1/2",9/16",5/8".
Packing dimension body(cm) 52*32*90cm
Packing dimension handle(cm), 10pcs/ctn 185*15*10
N.W/G.W (kg) 74/80kgs
