Shearing & Cutting- Manual Plate Shear Hand Shear HS Series

Short Description:

* Best for cutting metal plate, round steel and flat steel
* Adjustable work hold-down
* Arched top blade allows effortless cutting throughout the stroke
* Heavy steel frame
* The long steel handle is for extra leverage
* Durable steel frame cutter includes hardened high carbon steel blade.
* Bolt to bench or table top. Blade is easily replaceable.


Product Detail

Product Tags

Shearing & Cutting- Manual Plate Shear Hand Shear HS Series

Feature
* Best for cutting metal plate, round steel and flat steel
* Adjustable work hold-down
* Arched top blade allows effortless cutting throughout the stroke
* Heavy steel frame
* The long steel handle is for extra leverage
* Durable steel frame cutter includes hardened high carbon steel blade.
* Bolt to bench or table top. Blade is easily replaceable.

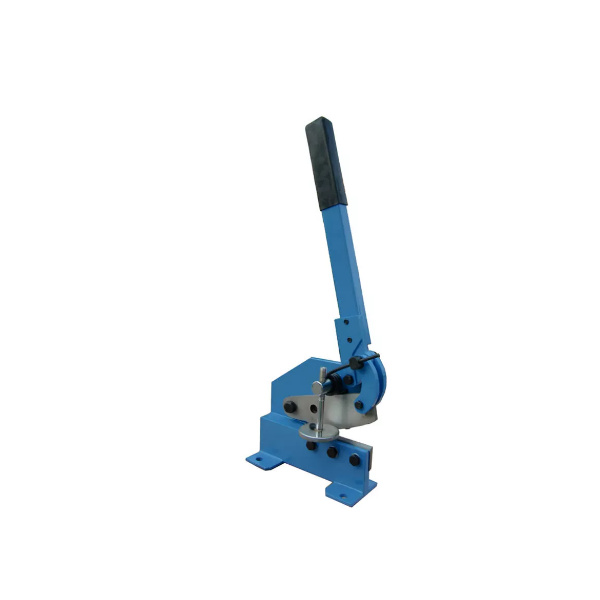

HS-5&HS-6

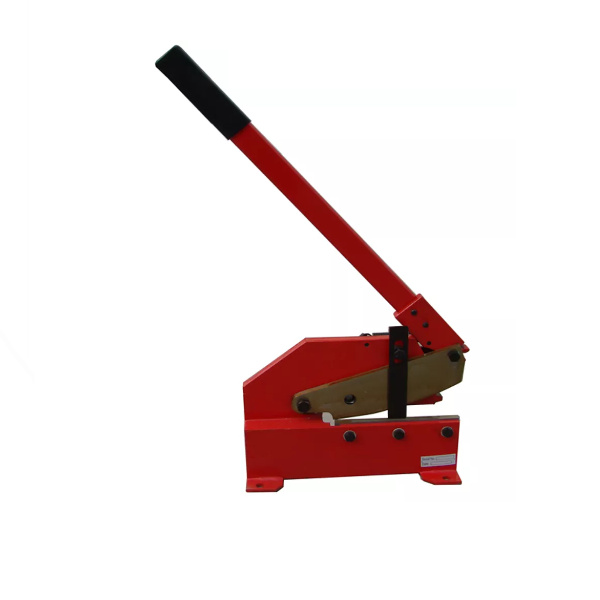

HSG-8 Hand Shear

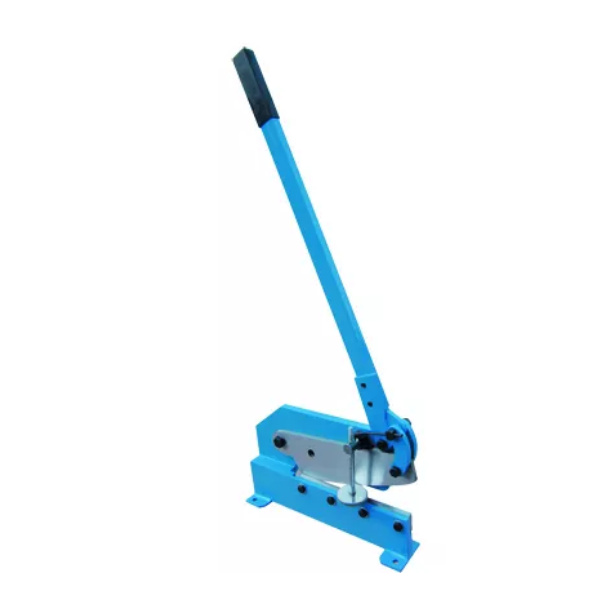

HS-8 & HS-10 & HS-12

Item No

Model

Capacity(mm)

N.W./G.W(KG)

Packing size(cm)

Blade length

Blade thickness(mm)

Flat steel

Round steel

225026

HS-5

125(5")

6

70x6

11

10.5/11

33*16*33

225028

HS-6

150(6")

6

70x6

11

12/12.5

33*16*33

225030

HS-8

200(8")

6

70x6

13

16/17

50*16*45

225032

HS-10

254(10")

6

70x6

13

20/21

76*16*44

225034

HS-12

304(12")

6

70x6

13

26/27

76*16*44

225020

HSG-8

200(8")

6

70x6

13

16/17

50*16*45

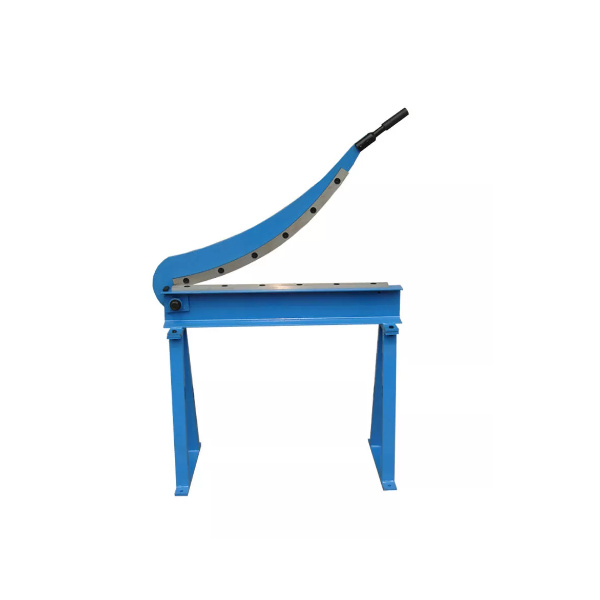

Shearing & Cutting- Manual Plate Shear Guillotine Shear HS-500 and HS-800 and HS-1000

HS-1000

Features:
* Cutting of thin metal up to 1.5mm /16 gauge
* Light model, easy operation, useful for construction work
* Delivery including stand but useable as a stand or table version
* Suitable for metal plate and plastic plate
* As a guide the clamp can be fixed in the U-angle

Item NO.

229010

229020

229030

Model

HS-500

HS-800

HS-1000

Bed width(mm)

500

800

1000

Shearing thickness(mm)

1.5

1.5

1.5

N.W./G.W.(KG)

37/45

41/50

52/65

Pcking size(mm)

54X27X44

84X27X44

135X27X44

r;gjsriohdr

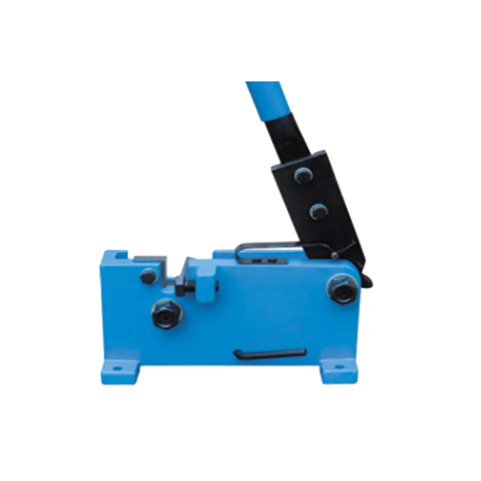

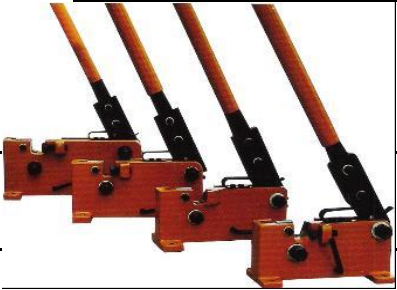

Shearing & Cutting-Bar & Section Shear- Manual Shear MS Series BAR CUTTER

Feature:
Best for cutting metal plate, rod steel, flat steel;
1.It can be used to shear non-ferrous metal or plate and bar;
2.The machine is portable and carry, light in weight,
3.small in size and takes the advantage of no power consumption.
4.Durable steel frame cutter includes hardened high carbon steel blade
5.Bolt to bench or table top.
6.Blade can be easily replaced


Item

Model

Capacity(mm)

N.W./G.W

Packing size(cm)

Flat steel

Round steel

Square steel

(KG)

BODY

HANDEL 10PCS/CTN

225040

MS-20

30×8

 4-20

18×18

20/21

40X19X34

152X26X10

225042

MS-24

35×12

 4-24

20×20

27/28

40X19X34

152X26X10

225044

MS-28

40×12

Steel 26, Copper 28

24×24

34/38

46X26X34

152X26X10

225046

MS-32

40×14

 Steel 28, Copper 32

28×28

48/52

51×28×43

152X26X10

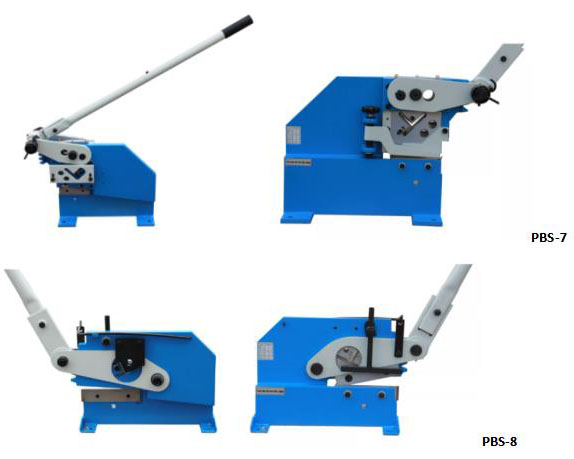

Shearing & Cutting-Bar & Section Shear PBS-7 and PBS-8 and PBS-9

c808c5bc663ab40499e59ec697e35c0

Features:
* Double function for cutting & punching
* Rigid cutter for sheet metals,flat steel and round/square/angular steel
* Round deep-hole,square or similar steel
* A good choice for sheet-metal users
* The durable steel frame cutter can bolt to bench or table top

Item No

Model

Capacity(mm)

N.W./G.W(KG)

Round steel

Square steel

Flat steel

Angel steel

T-steel

Plate steel

225015

PBS-7

22

20

90X14

60X7

60X7

10

96/105

225010

PBS-8

16

16

100X10

40X6

40X6

8

42/47

a556b3f21a19f3bc12562f29cd86336

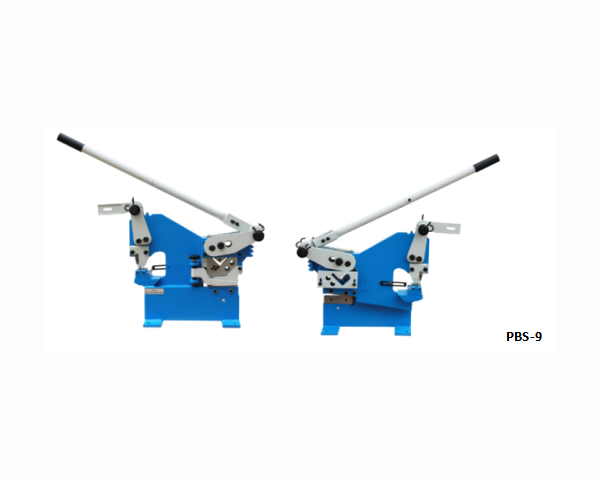

Item No 226013
Model PBS-9
Capacity(mm)
Round steel 22mm
Square steel 20mm
Flat steel 90X14mm
Angel steel 60X7mm
T-steel 60X7mm
Plate steel 10mm
Max. Punching Capacity 8mm
Throat Depth 160mm
PUNCH MOLD & DIA. 55X34X18mm
Standard Die 16mm/5/8"
The other Die( Extra Cost) 1/8" ,3/16" ,1/4" 5/16" 3/8", 7/19" 1/2" 9/16" 5/8
N.W./G.W(KG) 110/125
Packing size(cm) Body 99x40xx68cm
Packing size(cm) Handel 124x33x74cm
084c70596530c8be9fd75ef3e3cfd5b

Features:
* Cut through mild steel, aluminum, brass and stainless steel with very little effort
* Long handle provides maximum leverage for the toughest cuts
* Heavy duty cast iron base for added stability

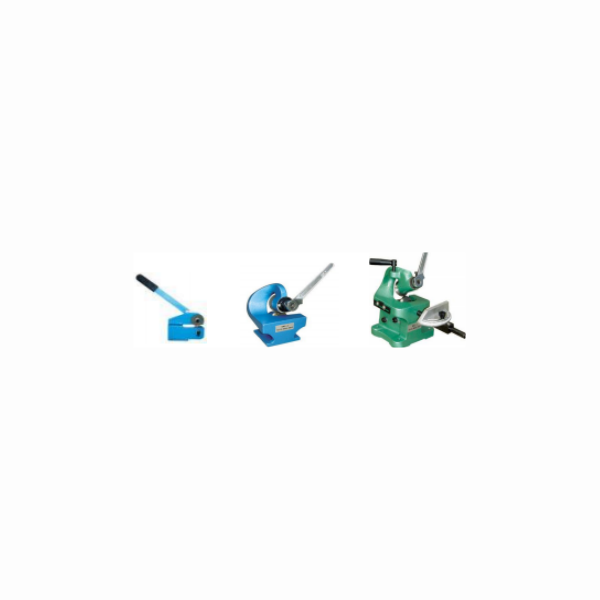

Shearing & Cutting Machine Multi-Purpose Manual Shear MMS Series

Item NO.

228010

225050

225055

Model

MMS-1

MMS-2

MMS-3

Max Capacity thickness (mm)

1.5

2.0

3.0

N.W./G.W.(kg)

7.2/8

9.5/11

21/23

Packing size(cm) innerbox

32*9*13

Packing size(cm) Outter ctn

34*38*15

22*18*26

28*28*41

Qty/Outter ctn

4SETS/CTN

1SETS/CTN

1SETS/CTN
