Specification Of 1″-2″-3″ Block & 2″-4″-6″ Block

Short Description:

1. Used for set-up, layout and inspection jobs
2. Made of high quality steel
3. Hardness: HRC55-62
4. 23holes:(5) 3/8″-16 tapped holes are provided for clamping operations.


Product Detail

Product Tags

Pictures

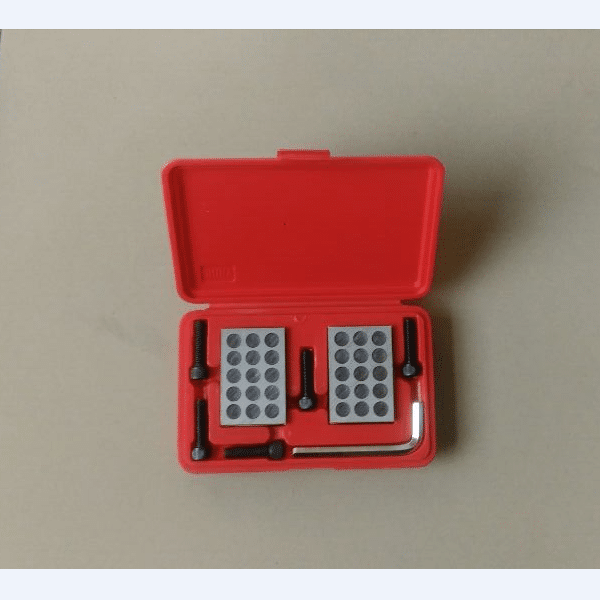

1-2-3 Block 00

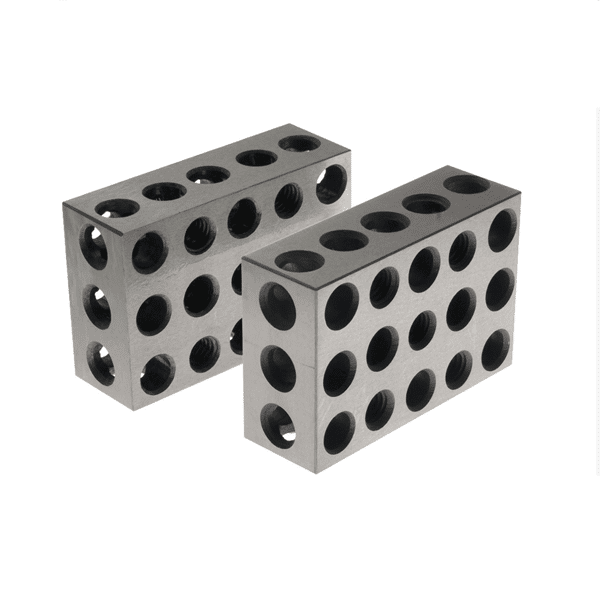

1-2-3 Block 01

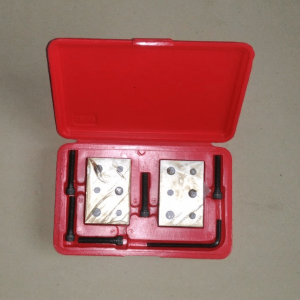

1-2-3 Block,11hole

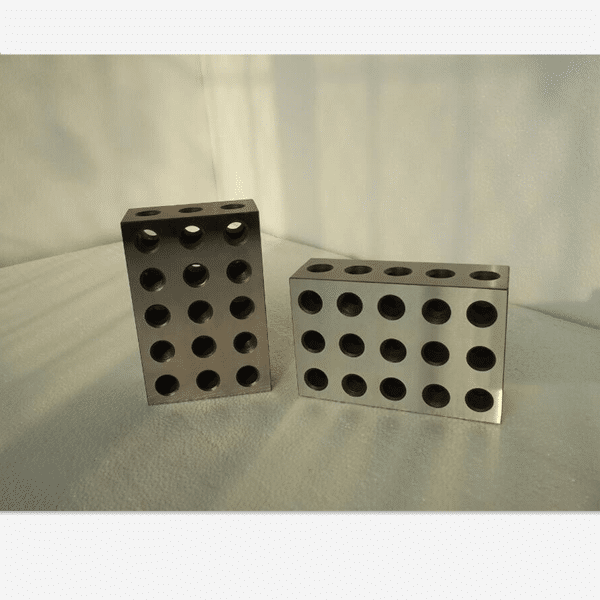

1-2-3 Block,23 hole

Specification

Item No

Item

Size Range

Squareness

Parallel Range

Hole

750669

1"-2"-3" Block

±0.0005"



0.0002"

23 hole

750670

1"-2"-3" Block

±0.0002"



23 hole

750602

1"-2"-3" Block

±0.0002"

0.0003"/1"

23 hole

750604

1"-2"-3" Block

±0.0003"       0

0.0003"/1"

23 hole

750606

1"-2"-3" Block

±0.0001"

0.0001"/1"

23 hole

750608

1"-2"-3" Block

±0.0002"

0.0003"/1"

11 hole

750610

1"-2"-3" Block

±0.0001"

0.0001"/1"

11 hole

750671

1"-2"-3" Block

±0.0003"       0



1 hole

750612

1"-2"-3" Block

±0.0003"             0

0.0003"/1"

1 hole

750672

1"-2"-3" Block

±0.0002"



0 hole

750614

1"-2"-3" Block

±0.0002"

0.0003"/1"

0 hole

Item No

Item

Size Range

Squareness

Parallel Range

Hole

750616

1"-2"-4" Block

±0.0002"

0.0003"/1"

0.0002"

23 hole

750673

2"-3"-4" Block

±0.0002"



750618

2"-3"-4" Block

±0.0003"       0

0.0003"/1"

750674

2"-4"-6" Block

±0.0004"



750675

2"-4"-6" Block

±0.0002"



750620

2"-4"-6" Block

±0.0002"

0.0003"/1"

750622

2"-4"-6" Block

±0.0003"       0

0.0003"/1"

750615

25-50-75mm

±0.005mm

0.0075mm

0.005mm

750617

25-50-100mm

±0.005mm

0.0075mm

750624

50-100-150mm

±0.005mm

0.0075mm

750676

50-100-150mm

±0.0125mm
