Specification of Universal Milling Machine UM Series
Model

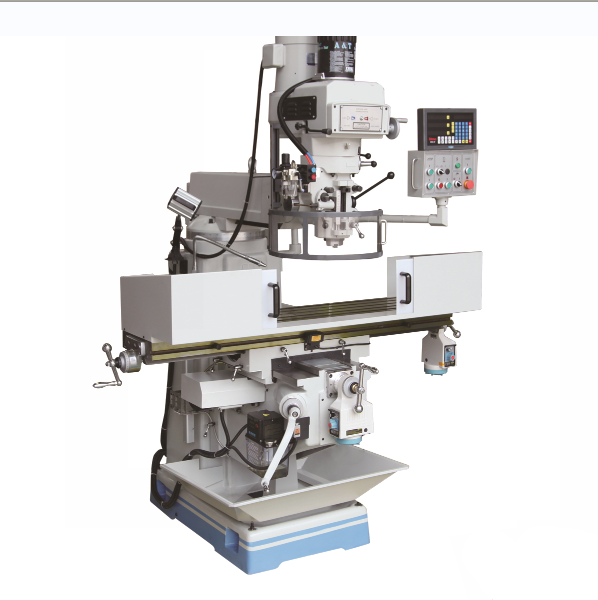

UM23A
Z axis: dovetail way
Y axis: dovetail way

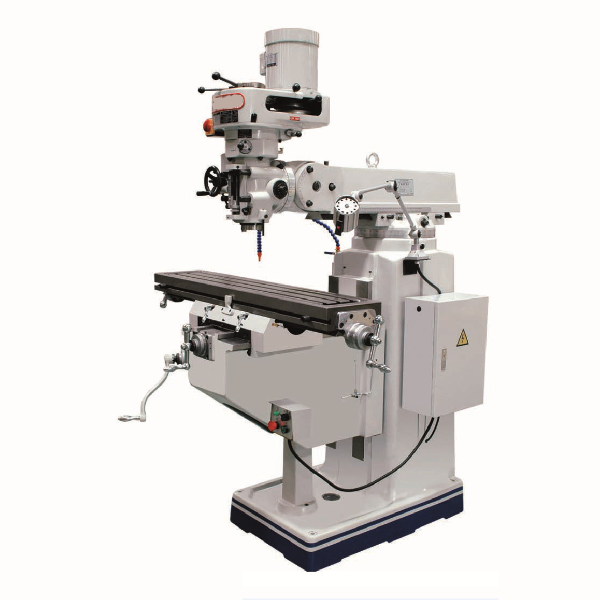

UM23B
Z axis: dovetail way
Y axis: box way
|
Model |
Unit |
UM23A 9"×42" |
UM23A 9"×49" |
UM23B 9"×42" |
UM23B 9"×49" |
|
Item NO. |
|
131020 |
131021 |
131022 |
131023 |
|
Table size |
mm |
230×1067mm(9''×42'') |
230×1246mm(9''×49'') |
230×1067mm(9''×42'') |
230×1246mm(9''×49'') |
|
Long travel |
mm |
670 |
850 |
610 |
790 |
|
Cross travel |
mm |
310 |
310 |
310 |
310 |
|
Vertical travel |
mm |
390 |
390 |
390 |
390 |
|
T-slot No.and size |
mm |
3×16 |
3×16 |
3×16 |
3×16 |
|
Ram travel |
mm |
315 |
315 |
315 |
315 |
|
Distance from spindle nose to table surface |
mm |
0~350 |
0~350 |
0~350 |
0~350 |
|
Spindle hole taper |
MT |
(standard):R8 (optional):ISO30/40 |
(standard):R8 (optional):ISO30/40 |
(standard):R8 (optional):ISO30/40 |
(standard):R8 (optional):ISO30/40 |
|
Spindle travel |
mm |
127 |
127 |
127 |
127 |
|
Spindle speed |
Rpm |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
|
optional: variable 60~4200 |
optional: variable 60~4200 |
optional: variable 60~4200 |
optional: variable 60~4200 |
||
|
Auto quill feed |
mm/rev |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
|
Spindle motor |
kw/HP |
2.2/3 |
2.2/3 |
2.2/3 |
2.2/3 |
|
Head swivel |
º |
90 |
90 |
90 |
90 |
|
Head tilting |
º |
45 |
45 |
45 |
45 |
|
One miller per case |
mm |
1400×1476×2030 |
1400×1476×2030 |
1400×1476×2030 |
1400×1476×2030 |
|
Two miller per case |
|
1450×1570×2080 |
1450×1570×2080 |
1450×1570×2080 |
1450×1570×2080 |
|
Three miller per case |
|
1450×2180×2080 |
1450×2180×2080 |
1450×2180×2080 |
1450×2180×2080 |
|
Gross weight/set |
kg |
1000 |
1060 |
1000 |
1060 |

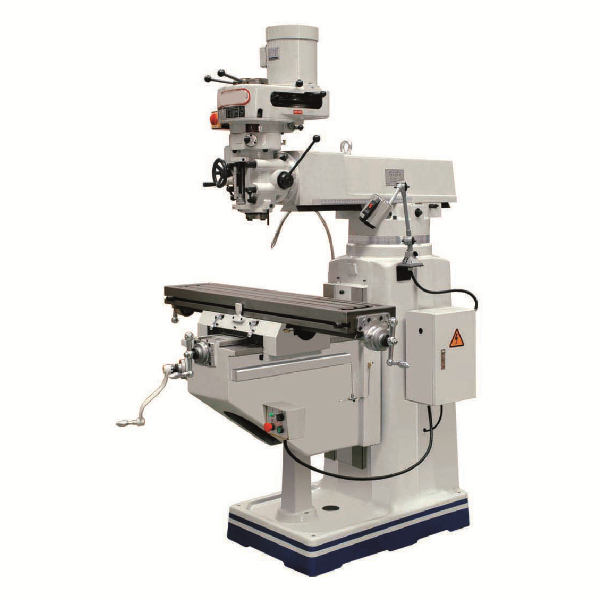

UM25
Z axis: box way
Y axis: box way

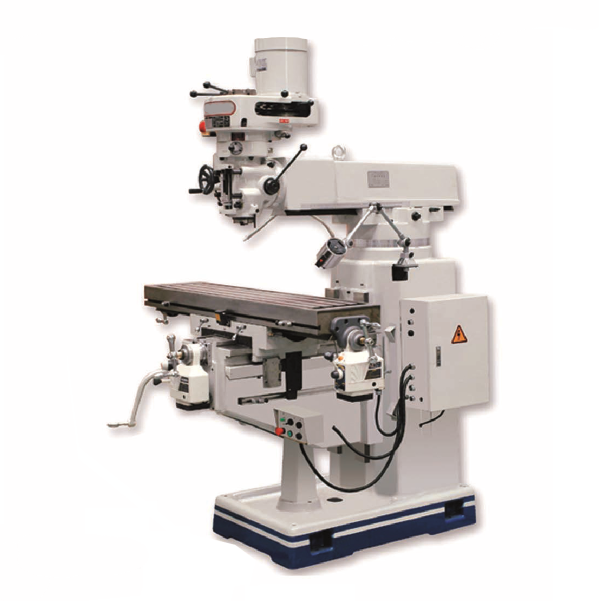

UM25A
Z axis: dovetail way
Y axis: dovetail way

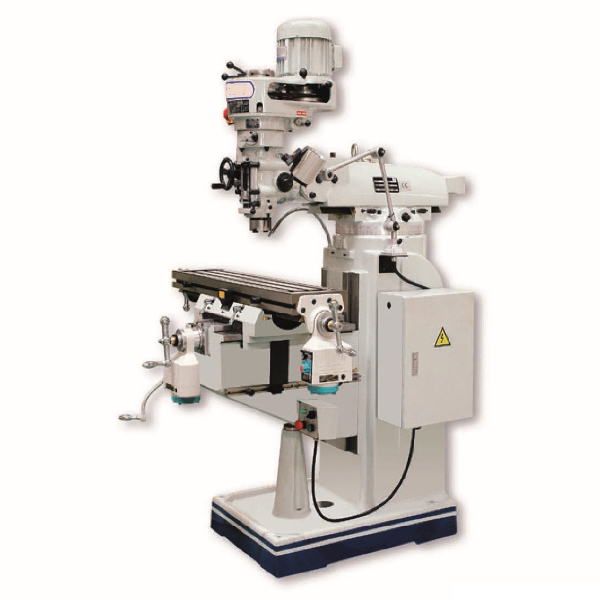

UM25B
Z axis: box way
Y axis: box way

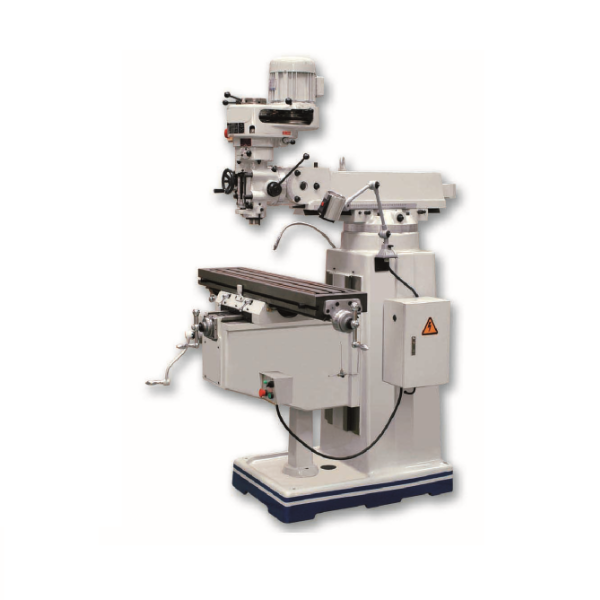

UM25C
Z axis: box way
Y axis: box way

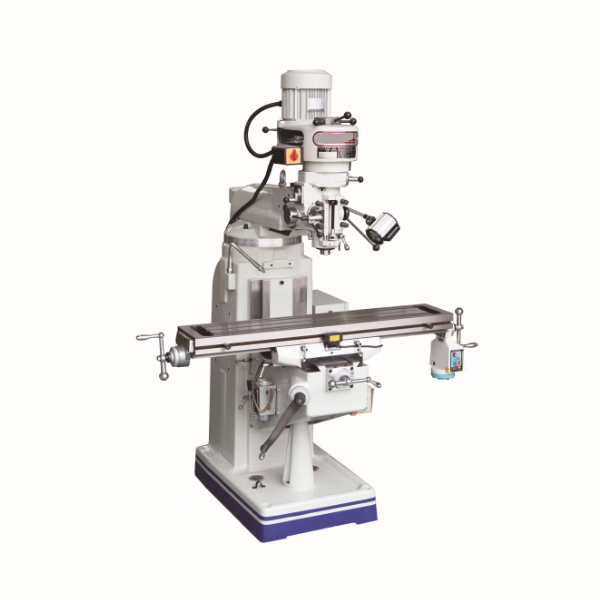

UM25D
Z axis: box way
Y axis: box way
|
Specification |
UM25 |
UM25A |
UM25B |
||||
| Model | Unit |
UM25 10"×50" |
UM25 10"×54" |
UM25A 10"×50" |
UM25A 10"×54" |
UM25B 10"×50" |
UM25B 10"×54" |
| Item NO. |
131030 |
131031 |
131040 |
131041 |
131050 |
131051 |
|
| Table size | mm | 254×1270(10''×50'') | 254×1370(10''×54'') | 254×1270(10''×50'') | 254×1370(10''×54'') | 254×1270(10''×50'') | 254×1370(10''×54'') |
| Long travel | mm |
820 |
920 |
800 |
900 |
820 |
920 |
| Cross travel | mm |
410 |
410 |
380 |
380 |
380 |
380 |
| Vertical travel | mm |
400 |
400 |
350 |
350 |
350 |
350 |
| T-slot No.and size | mm |
3×16 |
|||||
| Ram travel | mm |
470 |
|||||
| Distance from spindle nose to table surface | mm |
0~400 |
|||||
| Spindle hole taper | MT |
(standard):R8 (optional):ISO30/40 |
|||||
| Spindle travel | mm |
127 |
|||||
| Spindle speed | Rpm |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
|||||
|
optional: variable 60~4200 |
|||||||
| Auto quill feed | mm/rev |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
|||||
| Spindle motor | kw/HP |
2.2KW/3HP |
|||||
| Head swivel | º |
90 |
|||||
| Head tilting | º |
45 |
|||||
| One miller per case | mm |
1516×1550×2080 |
|||||
| Two miller per case | mm |
1650×1790×2170 |
|||||
| Three miller per case | mm |
1650×2285×2235 |
|||||
| Gross weight | kg |
1320 |
1320 |
1280 |
1280 |
1320 |
1320 |
|
UM25C |
UM25D |
||
|
UM25C 10"×50" |
UM25C 10"×54" |
UM25D 10"×50" |
UM25D 10"×54" |
|
131060 |
131061 |
131070 |
131071 |
| 254×1270(10''×50'') | 254×1370(10''×54'') | 254×1270(10''×50'') | 254×1370(10''×54'') |
|
820 |
820 |
920 |
920 |
|
410 |
410 |
410 |
410 |
|
400 |
400 |
400 |
400 |
|
3×16 |
|||
|
470 |
|||
|
0~400 |
|||
|
(standard): ISO40 |
|||
|
127 |
|||
|
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
|||
|
optional: variable 65~3750 |
|||
|
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
|||
|
3.7KW/5HP |
|||
|
90 |
|||
| FIX | FIX |
45 |
45 |
|
1516×1550×2080 |
|||
|
1650×1790×2170 |
|||
|
1650×2285×2235 |
|||
|
1490 |
|||
Standard accessory
Draw bar
Electrical box
Working lamp
Handle oil pump
Tools and tool box
Optional accessory
Cooling system
Oil collecting plate
Plastic splash guard
Variable speed milling head
Z-axis motorized lift(UM23&UM25 Series)
6inch machine vise
X axis power feed( TAIWAN ALIGN)
X axis power feed( TAIWAN TONG-E)
X axis power feed( TAIWAN SKYEE)
X axis power feed (CHINA)
Y axis power feed( TAIWAN ALIGN)
Y axis power feed( TAIWAN TONG-E)
Y axis power feed( TAIWAN SKYEE)
Y axis power feed (CHINA)
Z axis power feed( TAIWAN ALIGN)
Z axis power feed( TAIWAN TONG-E)
Z axis power feed( TAIWAN SKYEE)
Z axis power feed (CHINA)
52psc clamping kits
58psc clamping kits
2 Axises DRO
3 Axises DRO
R8 collets(8/11/15)
30/40 Milling chuck(8/11/15)
Spindle guard
X axis gear box power feed
Y axis gear box power feed
X-axis variable frequency feed
Y-axis variable frequency feed
Air power draw bar
Table protection +emergency stop
Hung up control Panel
Hung up control Panel with DRO
Aluminum alloy Hung up control Panel with DRO
Automation lubrication pump
Ballscrew(XY axis) UM23 Series
Ballscrew(XY axis) UM25 Series

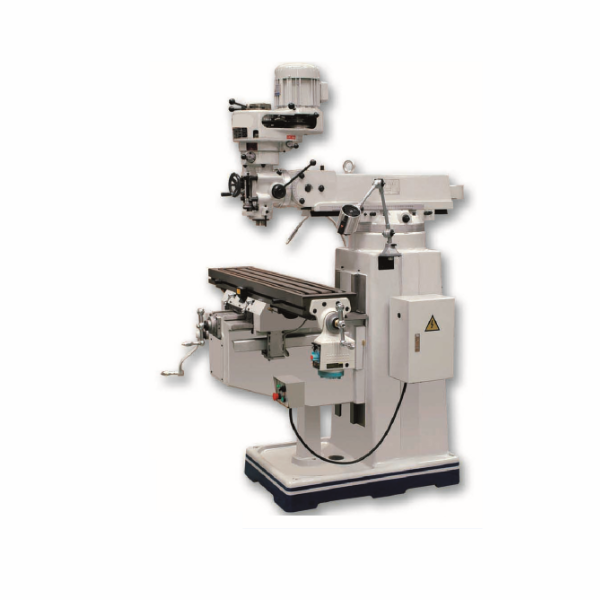

UM30
Z axis: box way
Y axis: box way
UM30
Z axis: box way
Y axis: box way
|
Model |
Unit |
UM30 12"×54" |
UM30 12"×58" |
UM30A 12"×54" |
UM30A 12"×58" |
|
Item NO. |
|
131080 |
131081 |
131090 |
131091 |
|
Table size |
mm |
305×1370mm(12''×54'') |
305×1500mm(12''×58") |
305×1370mm(12''×54'') |
305×1500mm(12''×58") |
|
Long travel |
mm |
870 |
1000 |
870 |
1000 |
|
Cross travel |
mm |
360 |
360 |
360 |
360 |
|
Vertical travel |
mm |
380 |
380 |
380 |
380 |
|
T-slot No.and size |
mm |
3×16 |
3×16 |
3×16 |
3×16 |
|
Ram travel |
mm |
500 |
500 |
500 |
500 |
|
Distance from spindle nose to table surface |
mm |
0~350 |
0~350 |
0~350 |
0~350 |
|
Spindle hole taper |
MT |
standard: ISO40 |
standard: ISO40 |
standard: ISO40 |
standard: ISO40 |
|
Spindle travel |
mm |
127 |
127 |
127 |
127 |
|
Spindle speed |
Rpm |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
|
optional: variable 65~3750 |
optional: variable 65~3750 |
optional: variable 65~3750 |
optional: variable 65~3750 |
||
|
Auto quill feed |
mm/rev |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
threesteps: 0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm/revoluion |
|
Spindle motor |
kw/HP |
3.7KW/5HP |
3.7KW/5HP |
3.7KW/5HP |
3.7KW/5HP |
|
Head swivel |
º |
90 |
90 |
90 |
90 |
|
Head tilting |
º |
45 |
45 |
FIX |
FIX |
|
One miller per case |
mm |
1566×1650×2080 |
1566×1650×2080 |
1566×1650×2080 |
1566×1650×2080 |
|
Two miller per case |
|
1720×1800×2175 |
1720×1800×2175 |
1720×1800×2175 |
1720×1800×2175 |
|
Gross weight/set |
kg |
1630 |
1650 |
1630 |
1650 |
Standard accessory
Draw bar
Electrical box
Working lamp
Handle oil pump
Tools and tool box
Vertical lifting motor
Optional accessory
Cooling system
Oil collecting plate
Plastic splash guard
Variable speed milling head
6inch machine vise
X axis power feed( TAIWAN ALIGN)
X axis power feed( TAIWAN TONG-E)
X axis power feed( TAIWAN SKYEE)
X axis power feed (CHINA)
Y axis power feed( TAIWAN ALIGN)
Y axis power feed( TAIWAN TONG-E)
Y axis power feed( TAIWAN SKYEE)
Y axis power feed (CHINA)
Z axis power feed( TAIWAN ALIGN)
Z axis power feed( TAIWAN TONG-E)
Z axis power feed( TAIWAN SKYEE)
Z axis power feed (CHINA)
52psc clamping kits
58psc clamping kits
2 Axises DRO
3 Axises DRO
R8 collets(8/11/15)
30/40 Milling chuck(8/11/15)
Spindle guard
X axis gear box power feed
Y axis gear box power feed
X-axis variable frequency feed
Y-axis variable frequency feed
Air power draw bar
Table protection +emergency stop
Hung up control Panel
Hung up control Panel with DRO
Aluminum alloy Hung up control Panel with DRO
Automation lubrication pump
Ballscrew(XY axis) UM23 Series
Ballscrew(XY axis) UM25 Series
| Model | Unit |
UM33 13"×54" |
UM33 13"×58" |
UM33A 13"×54" |
UM33A 13"×58" |
| Item NO. |
131100 |
131105 |
131200 |
131205 |
|
| Table size | mm |
330×1370(13''×54'') |
330×1500(13''×58'') |
330×1370(13''×54'') |
330×1500(13''×58'') |
| Table longitudinal travel | mm |
820 |
1000 |
820 |
1000 |
| Table cross travel | mm |
380 |
|||
| Table vertical travel | mm |
460 |
|||
| T-slot NO.and size | mm |
3×16 |
|||
| Ram travel | mm |
500 |
|||
| Distance from spindle end to table surface | mm |
0~450 |
|||
| Spindle taper |
ISO40 |
||||
| Quill travel | mm |
127 |
|||
| Spindle speed | r/min |
standard:shift grade16, 50HZ: 65~4500 60HZ: 80~5440 |
|||
|
optional: variable 60~3600 |
|||||
| quill feed rate | mm/rev |
0.04(0.0015'')/ 0.08(0.003")/ 0.15(0.006")mm |
|||
| motor power | HP |
5 (3.7kw) |
|||
| Head swivel(R/L) | º |
-90/ +90 |
|||
| Head swivel(up/down) | º |
-45/ +45 |
-45/ +45 |
Fixed |
Fixed |
| package size (1set/pallet) | mm |
1800×2020×2200 |
|||
| package size (2set/pallet) | mm |
1800×2200×2200 |
|||
| Gross weight | kg |
2200 |
2250 |
2200 |
2250 |
Standard accessory
Draw bar
Electrical box
Working lamp
Handle oil pump
Tools and tool box
standard milling head 5HP/NT40/16 speeds
Optional accessory
variable speed
coolant system
chip tray
plastic splashing guard
X axis power feed(SKYEY)
Y axis power feed(SKYEY)
Lubr.oil pump
2 axis DRO
6" machine vise
58 pcs clamping kits
15 pcs collect chuck
