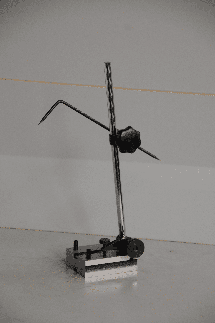

Surface Gage With Steel Base For Precise Marking Out Operations
Application
Surface gages are designed for a wide variety of uses. The main uses are for accurately scribing ine, transferring measurements, and for probing surfaces in inspection work.
Lines can be scribed to heights and depths. Lines can also be scribed on horizontal surfaces referenced from gage pins on the tool . Scribers are usually set in relation to rule graduations or height gages.

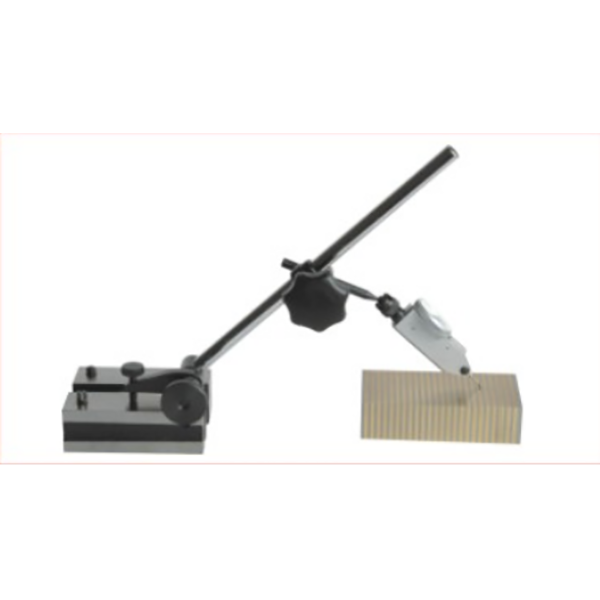

Combining surface gages with test indicators and accessories makes it easier to check flatness, parallelism, heights, and depths.

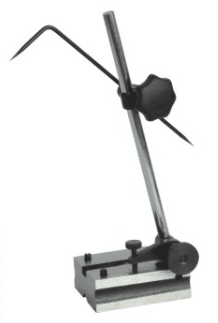

Introduction Of Surface Gages
1.Designed for precise marking out operations.
2. Steel base, ground on one end and bottom face.
3. Bottom groove for cylindrical work.
4. V groove on the front end which allows the spindle to adjust to any angle above or below the base.
5. One handed fine adustment.
6. There are two frictionally held gage pins in the base which can be pushed down and used against the edge of a surface plate or T-slot for linear work.
7. Radial groove on the side of the base for a sure and easy grip.
Response Efficiency
1. How long is your production lead time?
It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
2. When can I get the quotation?
We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
3. Can you send products to my country?
Sure, we can. If you have no your own ship forwarder, we can help you.
About Samples
1. How to apply for free samples?
lf the item(you selected) itself have stock with lower value, we can send you some for testing, but we need your comments after tests.
2. What about the charge of samples?
lf the item (you selected) itself have no stock or with higher value, usually double its fees.
3. May l get all refund of samples after place first order?
Yes. The payment can be deducted from your first order's total amount when you pay.

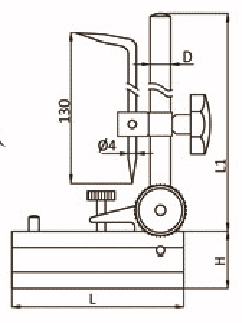

Specification
| Item No | Model | Base(LxWxH) | Stem Dia.*L1 | Weight |
| 715505 | 12" & 18" | 84*65*27 | 10*455 | 1.6kg |
| 715503 | 9" & 12" | 84*65*27 | 10*300 | 1.5kg |
| 715501 | 4" & 7" | 84*65*27 | 10*175 | 1.4kg |
