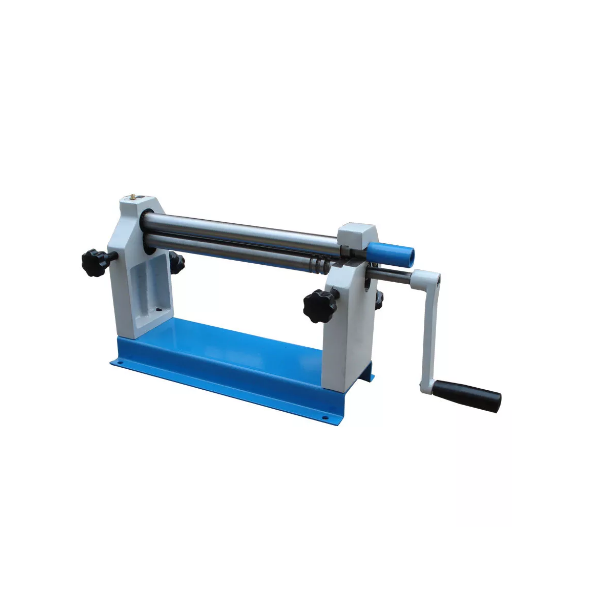

W01-0.8X305 Slip roll machine

Short Description:

* Easy and manual operation.
* Quick release top roller
* Hardened steel gearing
* High strength steel rolls
* Precision ground cast iron roller
* Top roll swing out
* Lower roll adjustment with adjustment lever and cam
* Our slip roll machine not only reels but can also cone the materials
*
 The processing capacity of the slip roll machine ranges from 305mm to 1300 mm
* Our slip roll machine can roll the round bar steels whose specifications are 6, 8, 10 and so on.
* The upper axis of our slip roll machine can be easily pulled out in order to take out the processed work piece


Product Detail

Product Tags

W01-0.8X305 Slip roll machine

W01-0.8X305 Slip roll machine

Features:

* Easy and manual operation.
* Quick release top roller
* Hardened steel gearing
* High strength steel rolls
* Precision ground cast iron roller
* Top roll swing out
* Lower roll adjustment with adjustment lever and cam
* Our slip roll machine not only reels but can also cone the materials
* The processing capacity of the slip roll machine ranges from 305mm to 1300 mm
* Our slip roll machine can roll the round bar steels whose specifications are ¢6, ¢8, ¢10 and so on.
* The upper axis of our slip roll machine can be easily pulled out in order to take out the processed work piece

parameter:

Item No Model Max.Thickness (mm) Max. Width(mm) Min. Rolling Dia(mm) Packing Dimension(cm) N.W./G.W.(kg)
224020 W01-0.8×305 0.8 305(12") 27 50×21×25 14/16
224022 W01-0.8×610 0.8 610(24") 40 94×26×36 37/38
224024 W01-0.8×915 0.8 915(36") 52 128×36×46 80/100
224028 W01-0.8×1016 0.8 1016(40") 52 138×36×46 88/109
224010 W01-0.8×1300 0.8 1300(50") 52 138×36×46 88/109
224050 W01-1.5×1016 1.5 1016(40") 53 150*45*66 150/180
224032 W01-1.5×1300 1.5 1300(50") 53 180*45*66 160/190

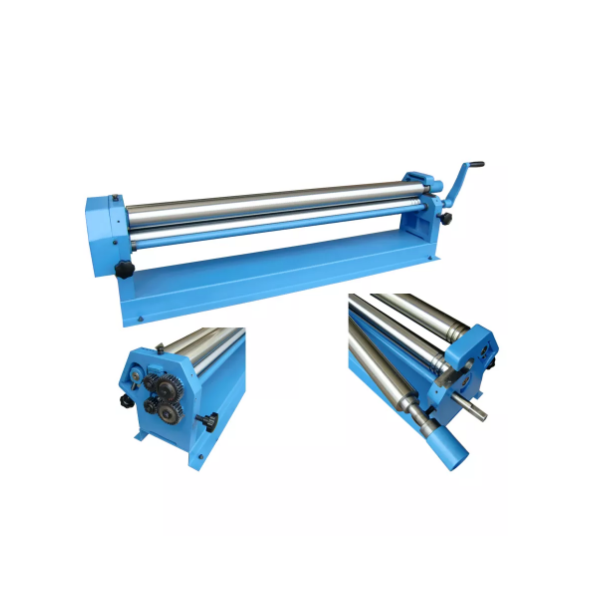

W01-1.5X1300 Slip roll machine

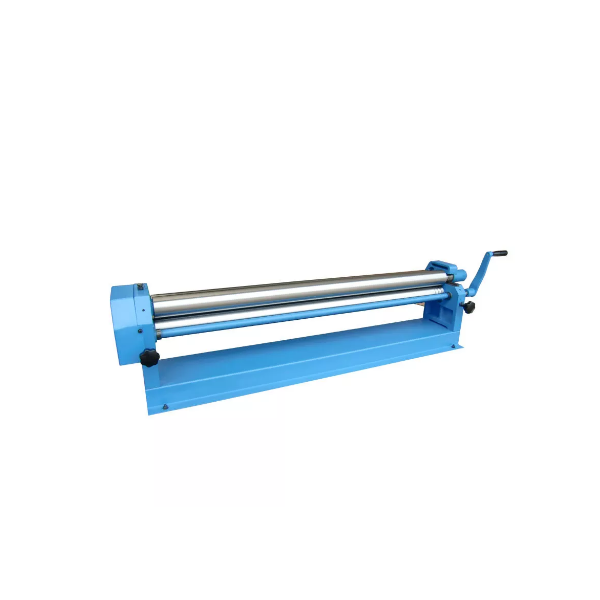

W01-0.8X1000 Slip roll machine

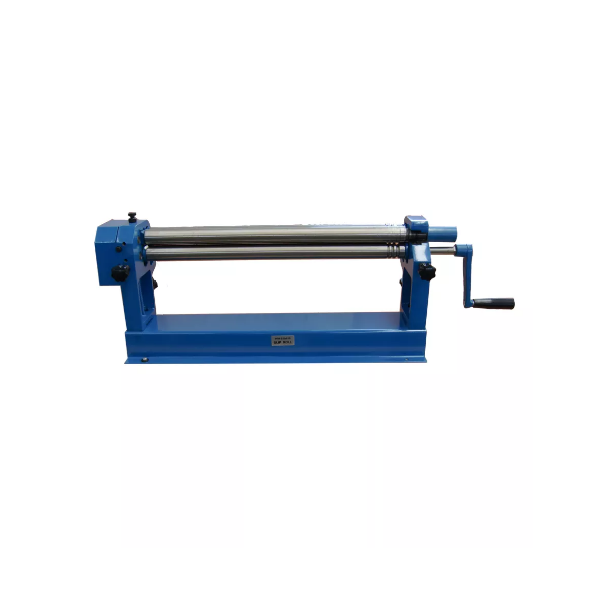

W01-0.8X915 Slip roll machine

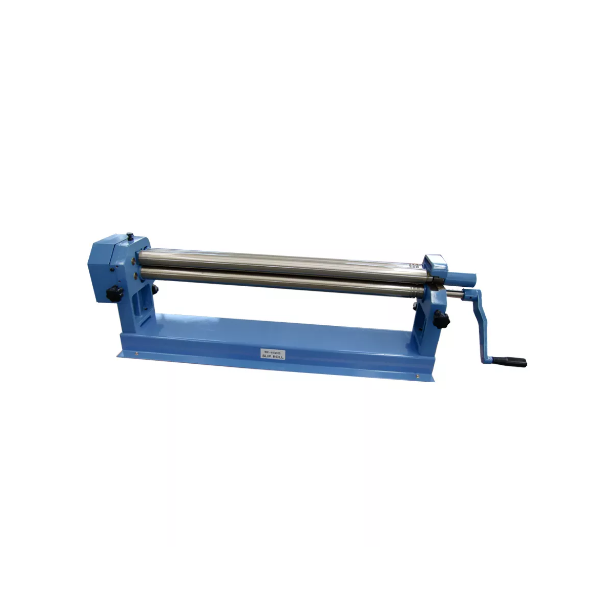

W01-0.8X610 Slip roll machine
